Vcore4 Hybrid belt tension

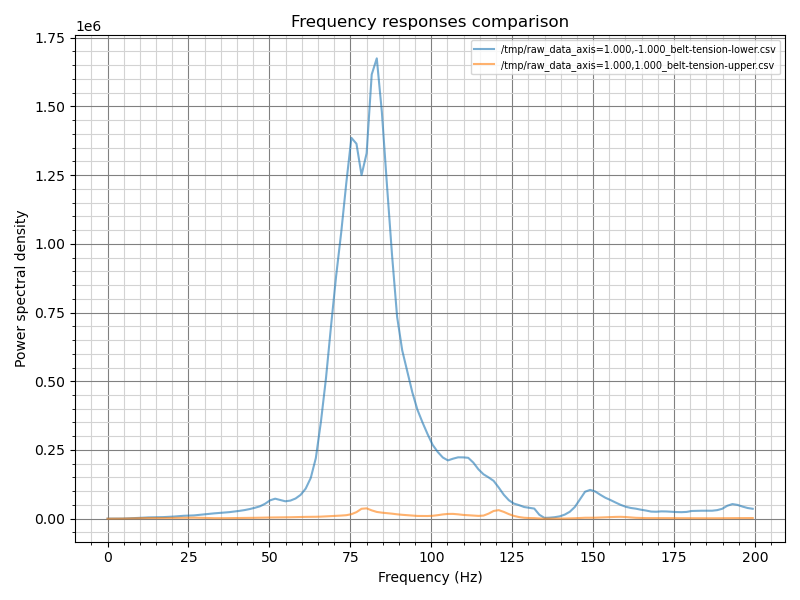

Hello, would someone comment if this looks good for a hybrid V4 400? I don't know what to make of it. Thank you
weird belt tension graph

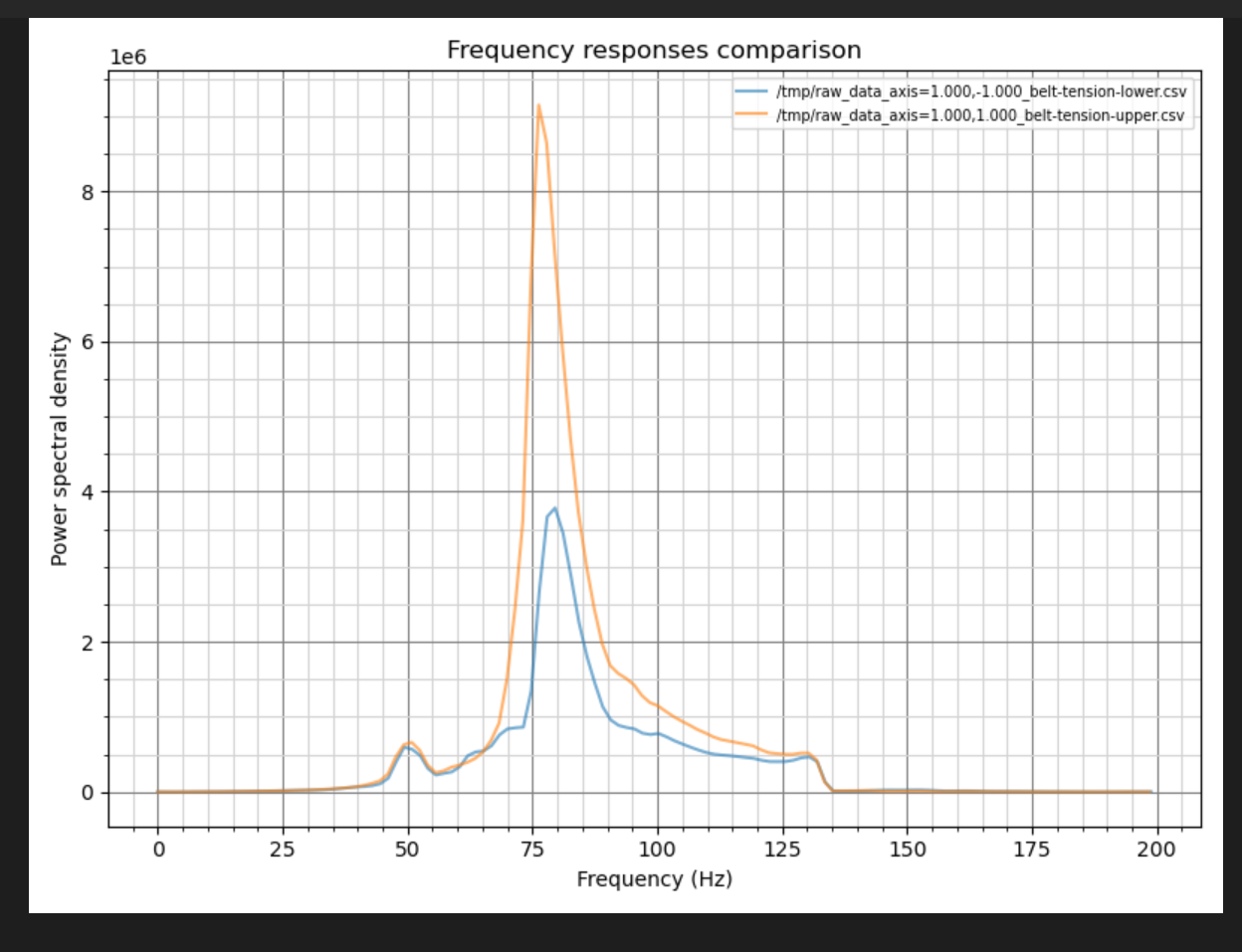

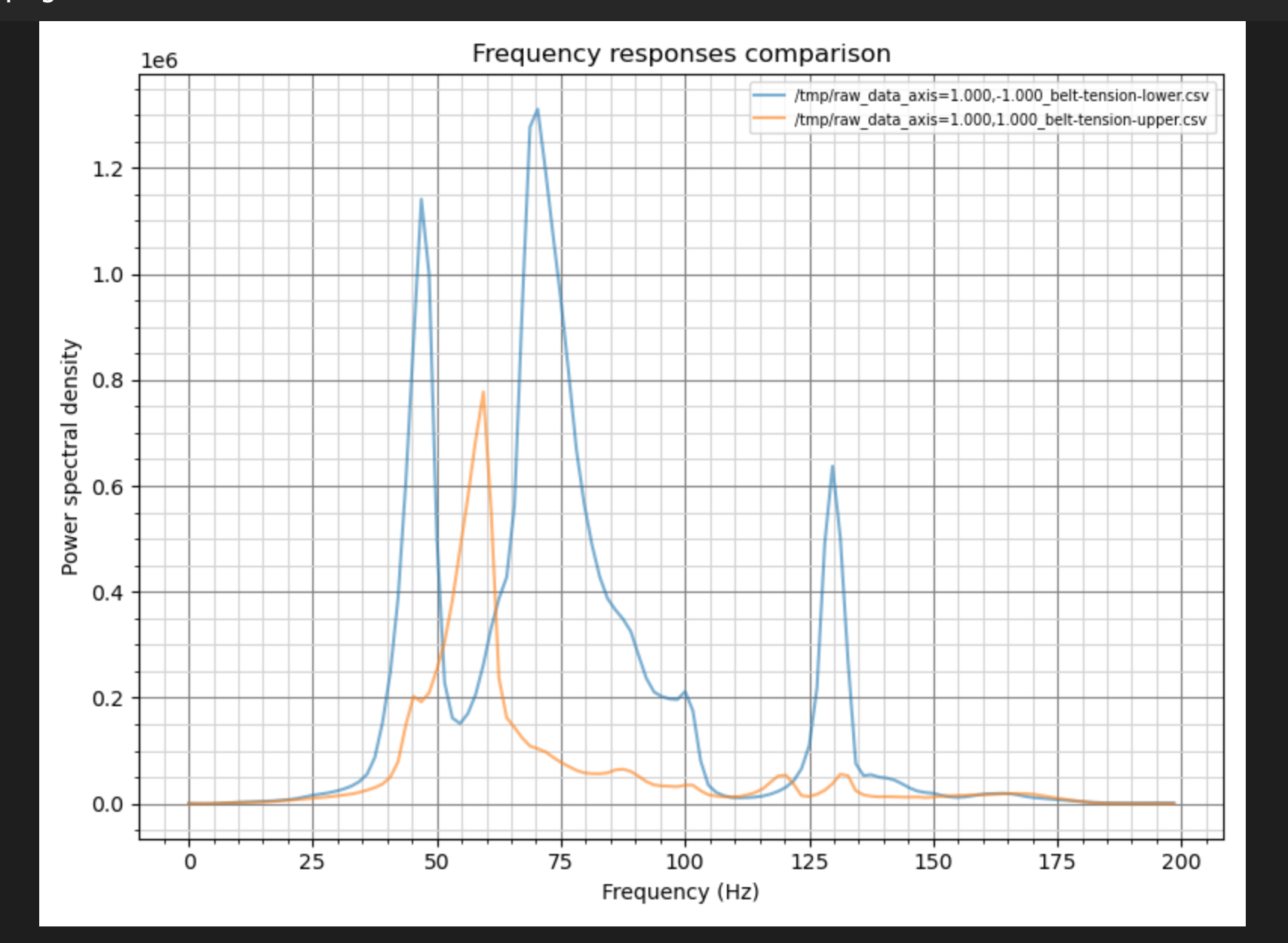

Hi, I have 2 opposite peaks, and I don't know what to do about it. at first I had the graph labeled 000 then I fiddle with it, make it worse, tried to get back to the original and now I have the second graph, prefixed with now
my x gantry was slighly skewed, which I solved before doingt those measurment with the belt tensionner.
also I applied too much torque (9.8 Nm instead of 0.98 Nm) on the Y rails, stripped all the screw and they cannot be removed (it was my first time using a torque wrench, I tough the screw sripping was the wrench telling me 'that's enought')...
Could use some guidance on the psd graphs. VC4 500

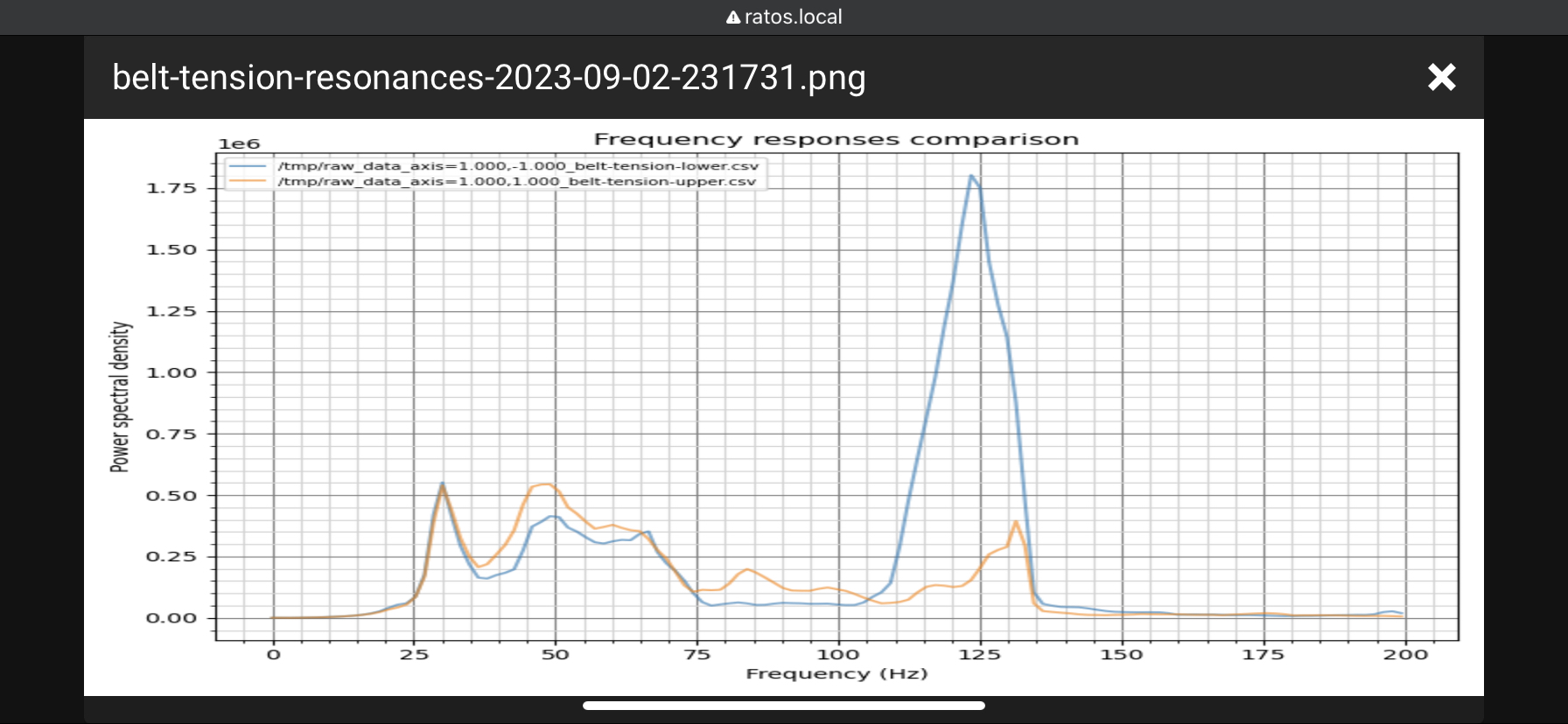

Having trouble with my resonance and tension in the belts and I’m not sure what to look for and what to adjust. I get that clicking noise in my left stepper if I tighten too much. I see some people with max psd in the 4-5 range but mine seem to start clicking if I do more than 3. Will have to double check the exact value, I just hate hearing that sound so avoid tightening too much.
I can’t seem to get the blue line to match up with orange no matter if I tighten or loosen either side. They just vary in maximums and difference but orange is always higher than blue. Maybe I need to focus on getting the first spike before that.
Lastly is the jump from 115 to 135. I know it’s a tool head issue but can’t seem to figure out what exactly it is. I also have that weird rise towards the end of the graph. ...
VC4 400 Hybrid Input Shaper Sanity Check

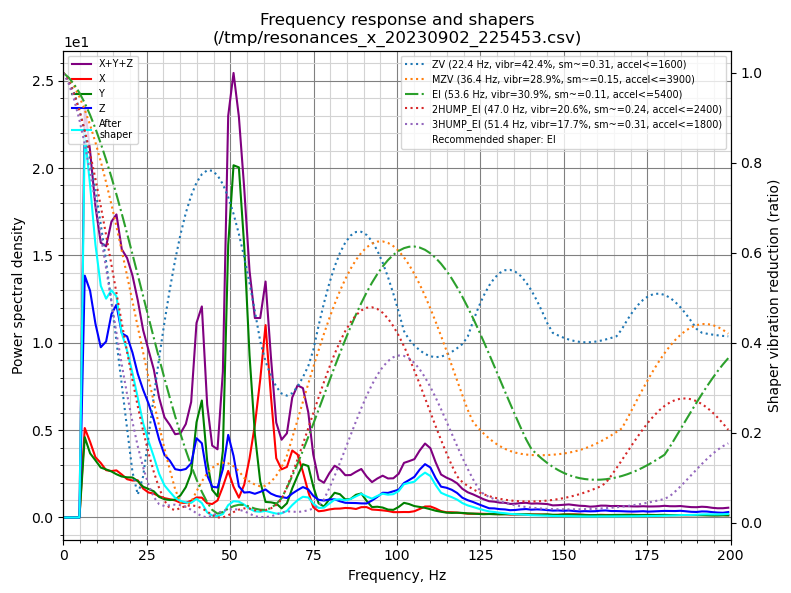

These feel like reasonable vibration and accel values to me but would love a second opinion. What would you set max accel to with these numbers? 8k?
Thanks!...
VC4 400 Hybrid

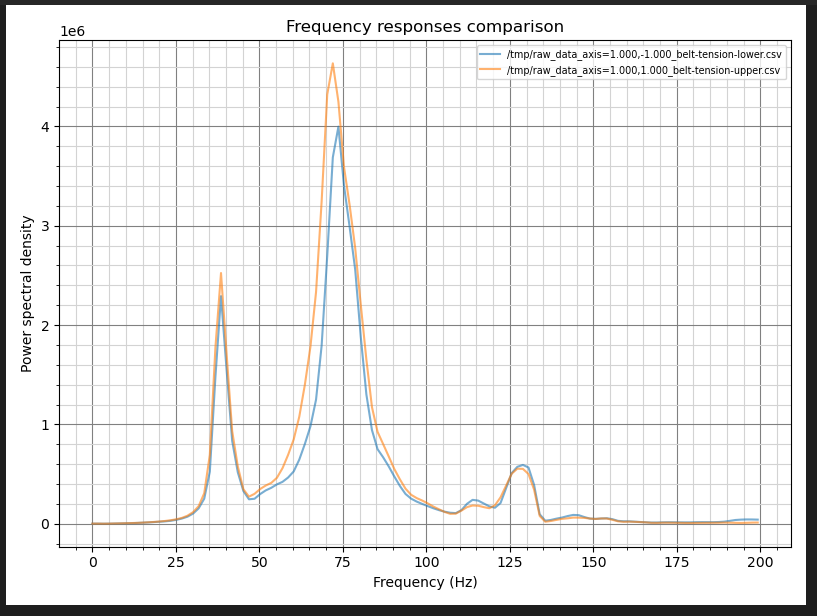

Please evaluate and interpret the charts, I've been struggling all day and I still have one peak.
"Oh, my V-Core 3.1 is working almost perfectly. I'll make it even better" then this
I'm a moron.
I had my V-Core in a great spot, but I started getting some weird resonances. At the end of my troubleshooting I replaced the rails/carriages, which got rid of the resonance noise, and also put in a light weight gantry. But while doing all of the prior troubleshooting, I must have misaligned something related to the lower belt and I believe from the belt tension graph it must be binding somewhere? Would the the lack of higher frequency resonance suggest an issue with the back run of the belt?
All micro shims are installed and accounted for as well....
VCore 3.0 300 Belt and Resonance graphs
Picked this up used pretty cheap, done some adjusting and these are where I am at now. I used Klippain Shaketune to generate them. I'm planning to reprint and upgrade the printer to 3.1 sometime in the future so I'm not after perfect results, but curious to know if there's any obvious things I could check that would improve these without taking things apart right now?
Peak 68hz on x and y
Hey guys,
does anyone have an idea what could cause this peak @68hz?? It is on x and y, so i think it is related to a belt or the printhead....
V-Core 4 400 COREXY - Y-graph
Hello
While my X-graph and belt tension graphs look good, the Y-graph looks somehow terrible and I don't know where to start. My assumption is a faulty idler pulley on the right side. Any ideas?...
VC4 400Hybrid What am I looking at here?
Following the guide I get to belt tension test. Y motors unplugged and belts disconnected. Not gunna lie I just folded the belt in half and cut it then pulled each as tight as I could and locked it all down with tensioners full loose, then tightened until it felt right, fined tuned to align gantry and happen to have same length hanging out so?. What's this mean tho? Do I need to pull 1 more tooth through on the upper? Did I nail it? Both to loose? to tight? I watched a very in-depth youtube vide...
VC3.1 300 - Chaos on the Y Axis
Hi there,
Have been putting my VC3.1 back together after moving house but I am seeing chaos on the Y-Axis input shaper graphs.
It's running RatOS 2.1, the stock motors with 4 Beam Ruland Decouplers, BRS Belt Tensioning M2 in PC-CF, Toro-Tube & Toro-Rail, Honeybadger medium-preload Y-Rails, and new bearings on all points.
...
No matter what I do I can not get rid of the third hump
I have never had this issue before
Everything I have read suggests this is a belt path issue.
The belts are all runing more or less in the centre of the bearing stacks
The belts are running in the centre of the motor pulleys
The belts are not rubbing on anything...
VC4 500 Hybrid - 2 close peaks on Y
I just got my hybrid belts on after finally getting decent graphs from corexy. I haven't seen a graph like this come up in here before so I'm not really sure where I need to start my next steps of troubleshooting.
I was able to find a few leads on the double peaks from the shaketune github. One was that they can come from a wobbly table but I'm pretty confident it's not a factor. The top is a steel plate 28mm thick and doesn't like to move.
Another suggestion is frame squaring. I think the frame is about as square as I'll get at this point. Beacon gantry twist macro has ranged from -43 to -51 um on recent runs and bed mesh range was .288 on my last run. ...
VC4 300 frequency response what can i do better?
Hi i test the half day but the result is most of the time equally
Maybe are the Belt length are the problem?...
Maybe are the Belt length are the problem?...
Y Achse Shaper sehr seltsam :/
V4 300 leider noch kein Hybrid :need: kommt aber hoffentlich bald! 🙂
jemand der mir evtl. helfen kann wo dran es liegt? Das die Y Achse so schlechte werte hat :/
Bild.
...
VCore 4 400 belt issue
Nice and even but no second bump and no idea where to start to try and fix that so any help would be much appreciated. The graphs are in order of newest to oldest
Vcore 4 400
I'm tuning the core XY belts on my Vcore 400. The first peak amplitude is lower than other graphs I've seen. I did correct the gear heights and it helped a little. Is this graph acceptable or is there some other cause of low amplitude at 50 ish Hz?
Thanks for any advice....
Kinda' stunned... do these still look good to you?
2.1 up and running.... a few kinks but I'd printed my old .cfg so was easy to fix the oddball stuff....
first res under 2.1 belts look REALLY good to me.... vibe seems about the same. (between version, so no ill effects on ops... woohoo)
The ability to just set a Hz and let the machine vibe while you dance around fingering parts to quell noises is FANTASTIC.
....anyway.... thoughts? flames? suggestions? yes.... I prefer my belts a tad on the tighter side (VC500 3.1 with RoS 2.1)...
Solution:
the input request in the loop (to continue the loop or not) is the 'pulse' I'm hearing as you describe. And yes, I do not see it effecting the graph/responses from the printer in the graph. You confirmed my query.... it's not an issue., was simply an observation on my part. tnx
