RatRig v4 500mm electronics/controller fan weird behavior

OK the printer is up and running, making very nice prints at pretty quick (if not super fast) speeds. But I've run into a weird problem with the electronics enclosure fan not turning on. I have the single, 180mm fan setup. Forgive me if this has been solved already, I did look around on this channel, but haven't been able to find a solution. Thanks. The fan is (was) wired up as per the build manual on PD12 (Octopus v1.1). It worked fine at first but stopped working after a few 10 hour prints. The fan works when I apply 24v from an external source. The ratOS dashboard shows the controller fan (PD12) as running, but it doesn't turn....
No description

Eddy Installation

Need help setting up printer.cfg to make eddy working, I have already flashed the firmware on eddy.

New Build. VCore 4 failed initial Z-Tilt after homing.

Hey everyone, I'm running into an issue trying to get Z-Tilt working on my RatRig V-Core 4 (500mm). I've followed the commissioning guide carefully, but when I try to run Z-Tilt from the Moonraker UI, the process fails. Here's what happens: 1. I home the toolhead (XYZ) successfully. ...

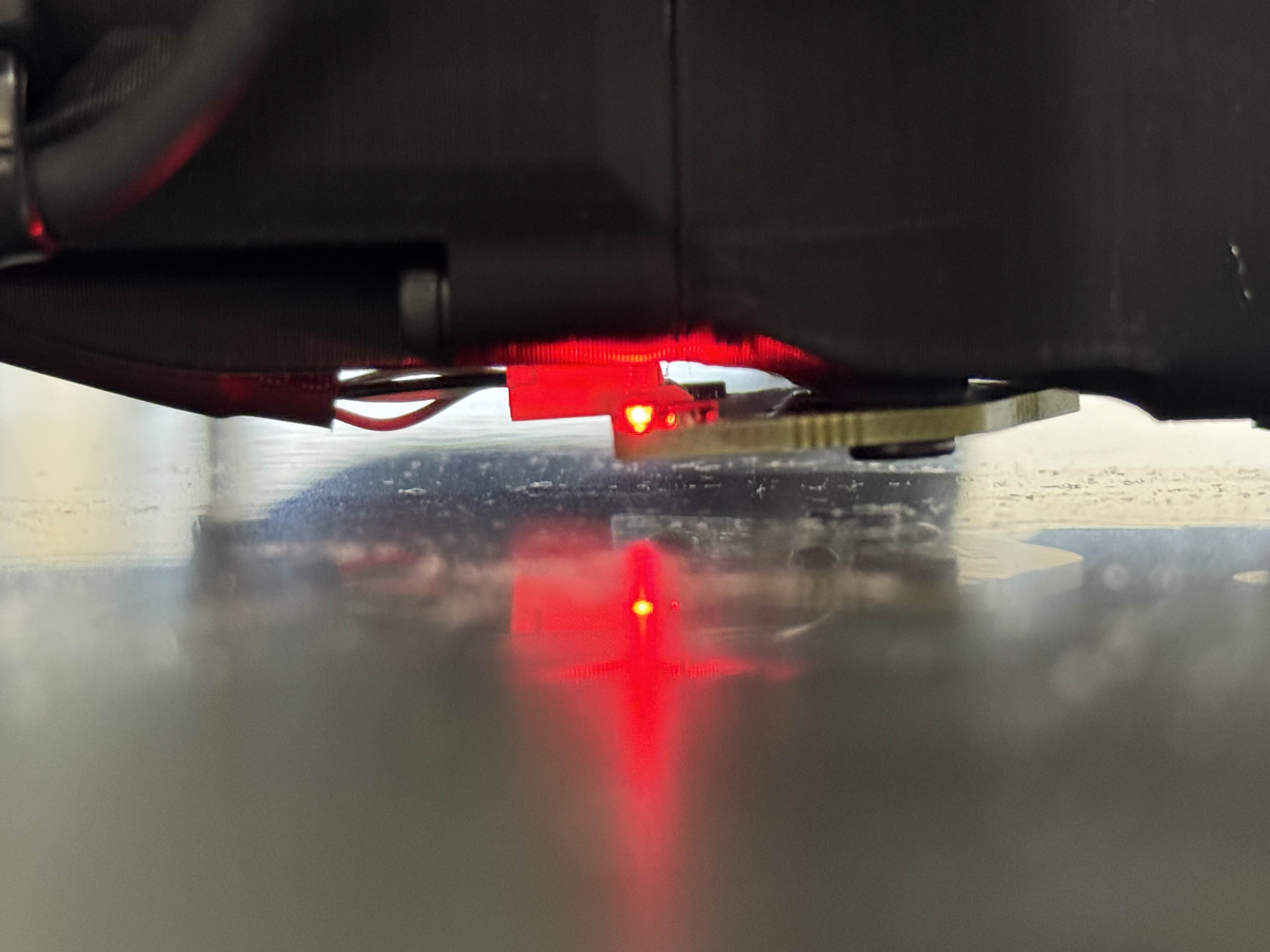

Beacon calibration failing during comissioning

I'm just assembling my first RatRig printer (first DIY, but fifth printer overall). I'm no stranger to DIY and the build went smoothly. My printer has passed virtually every commissioning step but one: BEACON_RATOS_CALIBRATE I've read a lot here about causes of this error, so I've tightened every bolt on the printer, I've tried hot-tightening the nozzle, changed the nozzle - everything I can think of. I've checked there's no play in the print head, my belts are evenly tensioned, but I always end up with the same error.
Probe samples exceed sample_tolerance
Probe samples exceed sample_tolerance
...
Solution:
Figured it out, there was a tiny bit of "stuff" (not sure what it was) stuck to the build plate and that was throwing off the beacon. Scraped it off and passed with flying colors!
No description

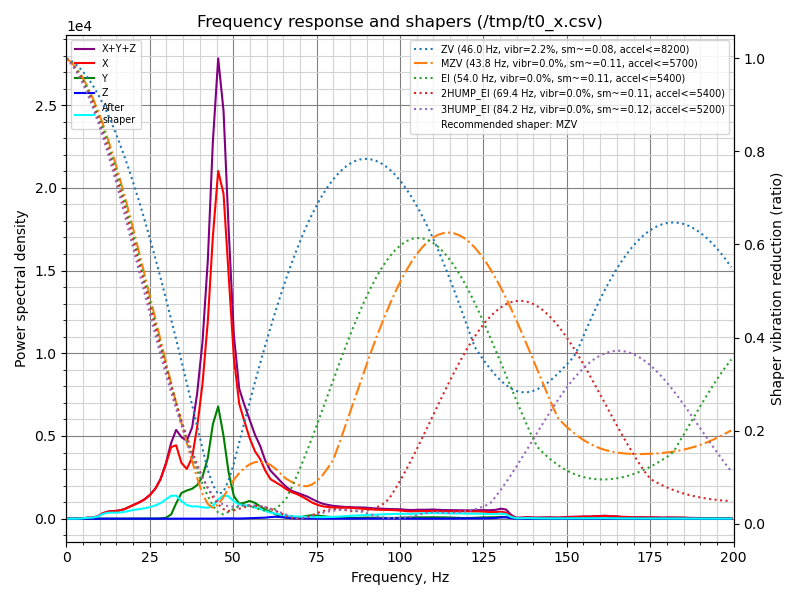

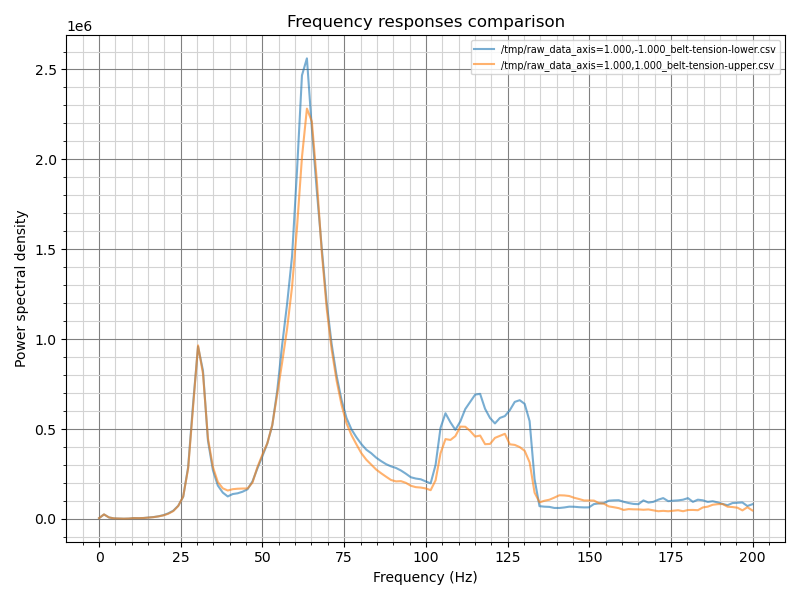

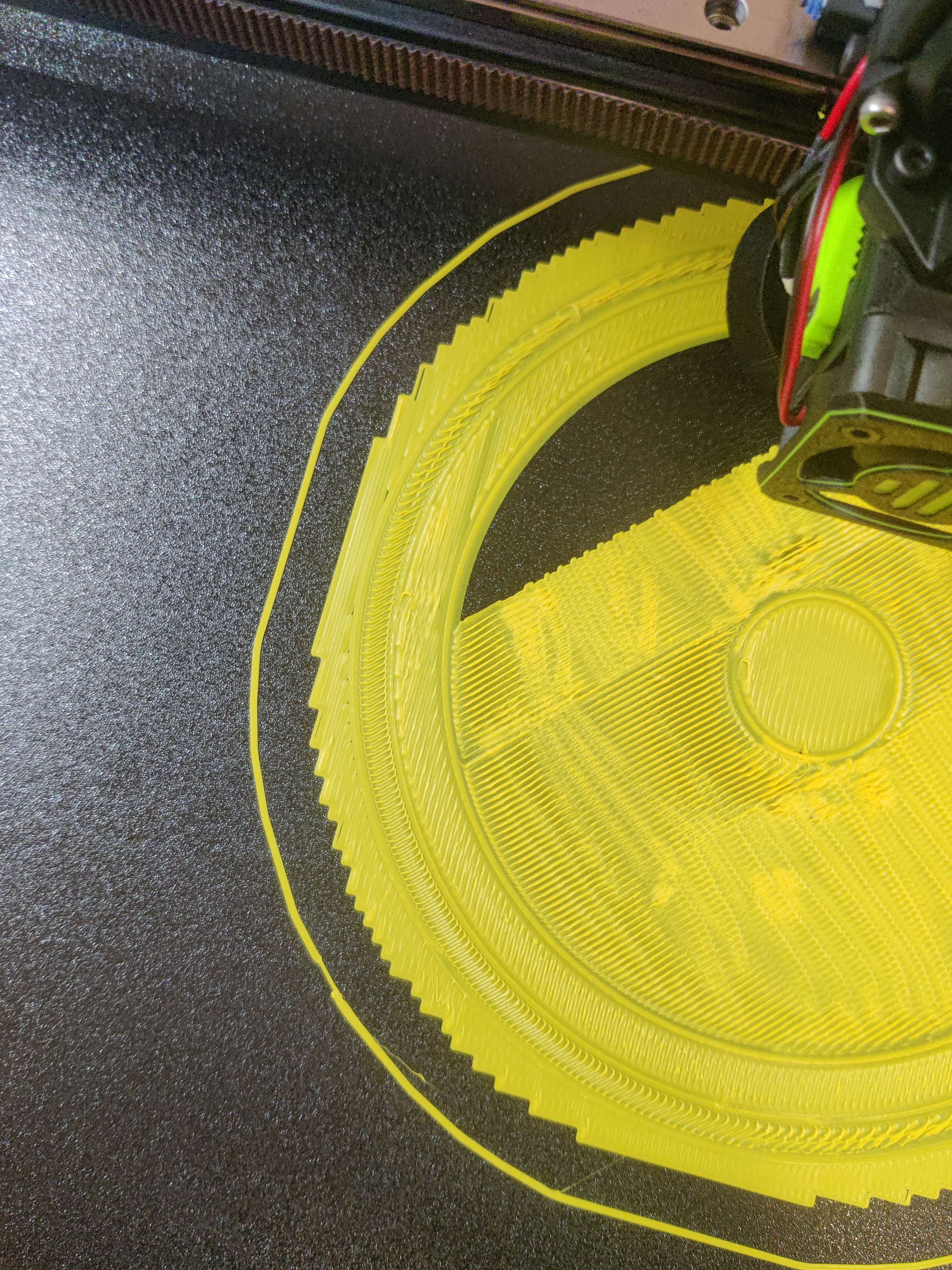

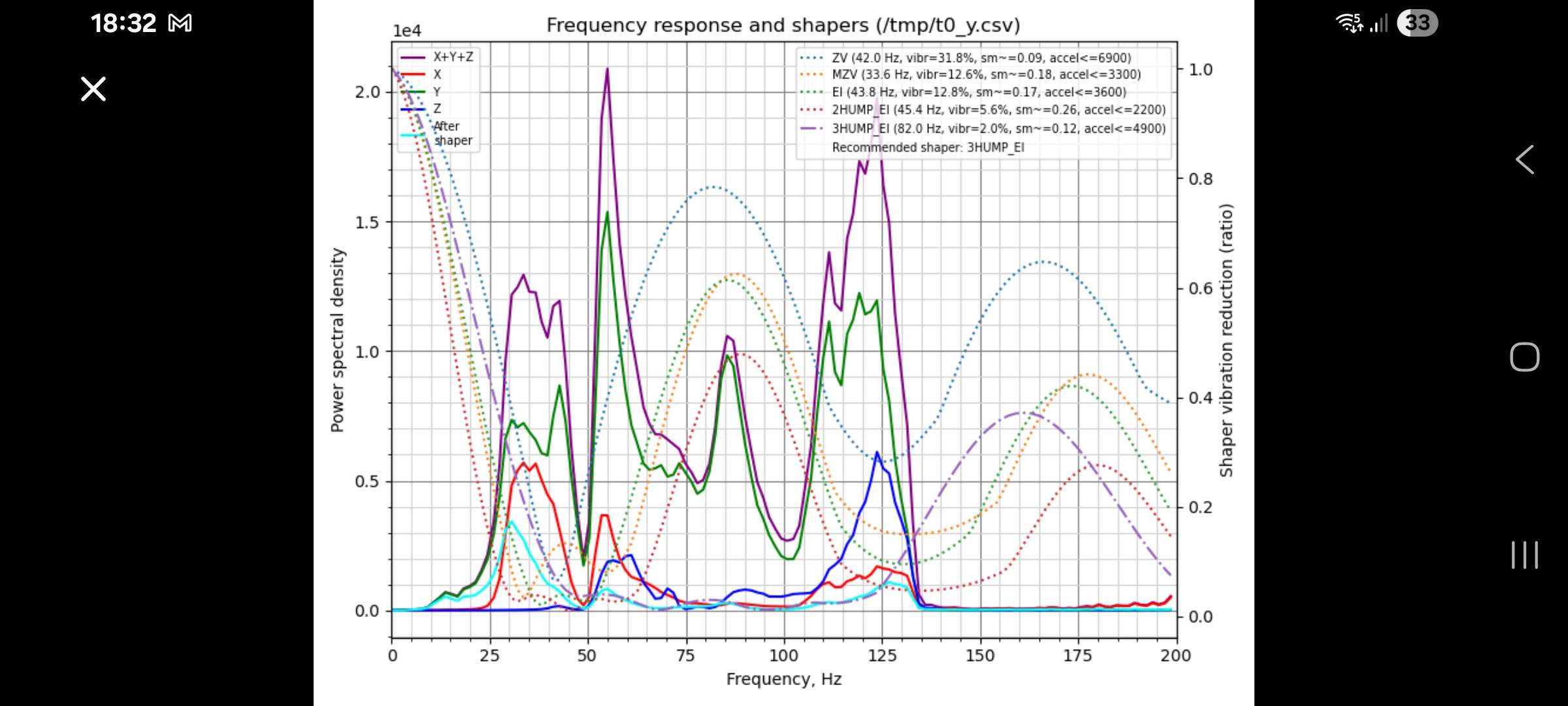

Layer shifting during Skew Calibration Print - VC4 400mm IDEX

Getting layer shifts in prints. Could it be belt tension related? I'm not used to using resonance graphs to tension belts.
No description

VCore 4 unknown chip pin 'probe'

Hello! I'm using the Beacon on the VCore 4 500 and everything was working fine until my latest machine update. I'm getting the error unknown chip name 'probe'. This prevents Klipper from running and wont let me use the configurator. I did reflash the stock firmware and that fixed the problem, but after updating I have the same problem again. The normal endstop_pin: probe:z_virtual_endstop is the problem, if using the beacon what should that pin name be? By defualt there is a space between the colon and 'probe', but on my other klipper machines, there is no space. I know this is the source of the error because if I change that chip pin name, whatever I specify becomes the new error word....

Cat pissed on my printer. Need new parts. What do you recommend?

Title says it all, printer got fried as the cat pissed on the rpi 4 and SKR PRO V1.2. Everything else looks fine, but need to replace those two, so why not upgrade! What is the go to for the SKR Pro replacement? I have had a big hiatus from the RatRig discord for a long time, so out of touch with the new parts available ...
No description

V-core 4 500 hybrid crashes gantry

When starting a print, printer levels all axis and does the Z-Tilt. Printer will then crash the Gantry in the rear of the printer. Video attached....

V-core 4 500 hybrid crashes gantry

When starting a print, printer levels all axis and does the Z-Tilt. Printer will then crash the Gantry in the rear of the printer. Video attached....

Replacing MGN12C rails with MGN12H

Hey RR family, I need to replace the X rail and the 2 Y rails on my VC3.1 300 - will changing the 12C blocks to 12H be a problem for the stock parts? I assume i won't need to change anything. I have the new Toolhead upgrade also. Thank you!...

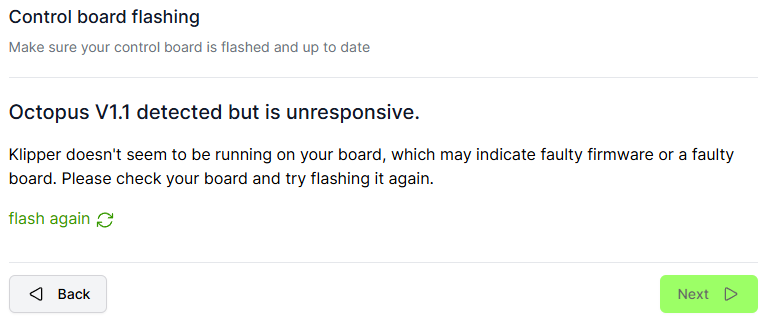

MCU unable to connect

I was mounting a spring to get strength to the umbilical cord, it was just a small part to understand how better it was getting. But I endup assemble it all, and when I was getting close to the toodhead, the fans turn on. I turn off the printer and when I turn it on I got the "MCU 'TOOLBOARD T1' unable to connect" error (first picture error on the touchscreen). I search for any disconnect cable (as happened in past) but I couldn't find any. I turn a few off and connect it again. Then I got a different error "MCU 'MCU' unable to connect" (second picture error on the touchscreen), and it stays like that....
No description

Beacon probe Z-offset is consistently too far from build plate

I've ran into this issue while installing and recommissioning my 500 V-core 3.0 with a new Toolhead V1.0 assembly. Every print starts the first layer too fat from the build surface (textured PEI sheet). I will baby step the print in to a good layer height and save it with "SAVE_Z_OFFSET" via console as per the RatRig Beacon documentation. I'll get a confirmation in console of the new thermal expansion compensation multiplier being saved, and entering SAVE_CONFIG once the print is done. I have no idea if the response I am getting of "The new multiplier value has been saved to the configuration" is correct or not. It doesn't exactly sounds like the correct response for a manual Z offset adjustment On the very next print the first layer will be nearly exactly as where it started on the first print pre-baby stepping. It's as if RatOS is overwritting the old Z-offset at the start of each print. My current understanding is that manually entered adjustments should be saved. I should note that at the start of each print I get a very consistent "Nozzle expansion offset" of -0.043281mm just before the printer starts printing, regarldess if I babystepped the previous print or not. What I would like help with is:...

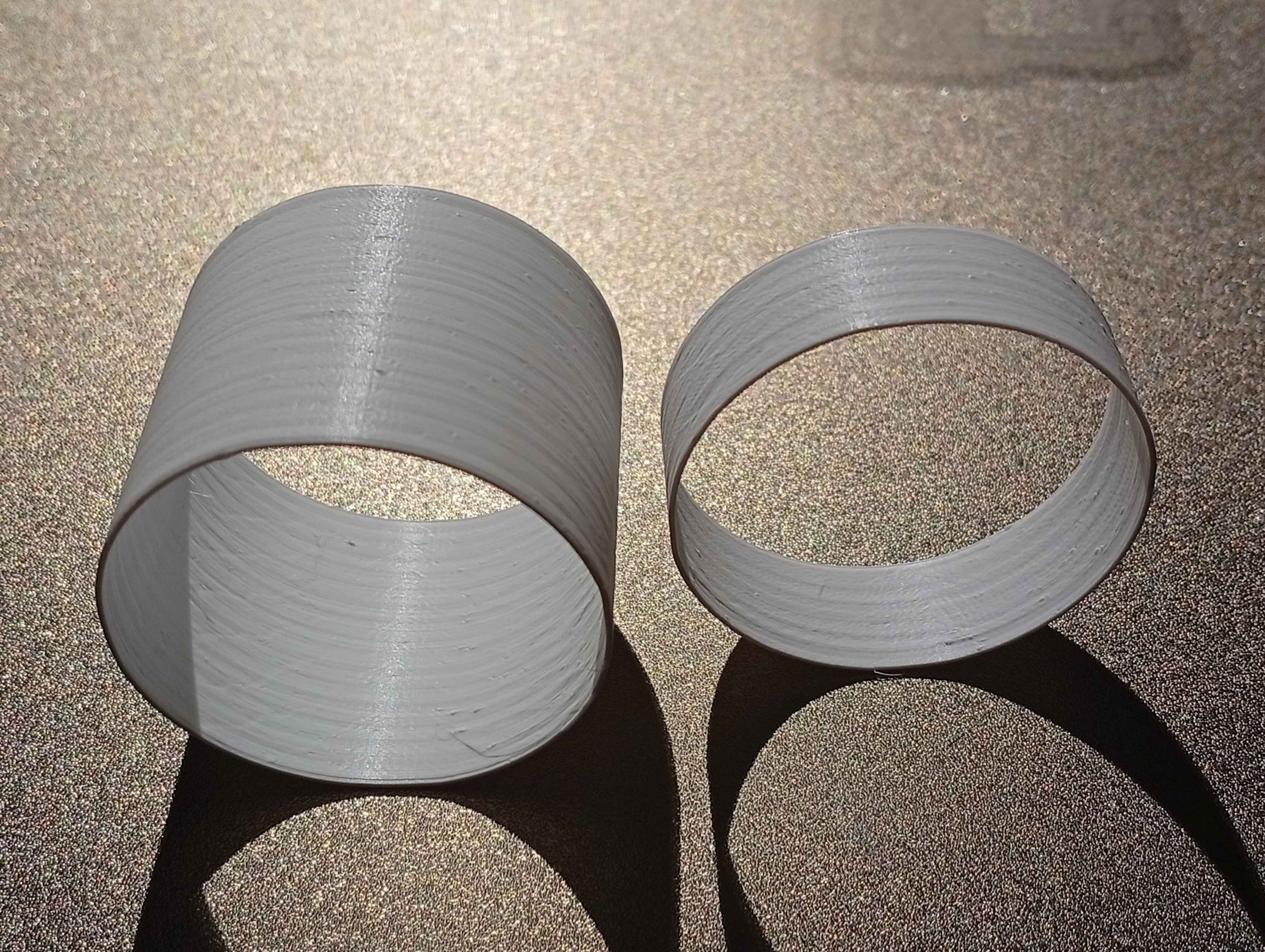

extrusion differences between near identical printers

Hi Folks, I have two vcore 300 printers. One is vcore3.0, the other vcore3.1. Both printers have very much the same hardware - octopus pro, rapido 2 uhf, orbiter 2, same TC 0.4 nozzles from West 3D. The 3.1 noticeably underextrudes as compared to the other when running the same gcode and same roll of plastic. I'd always expect slight differences between printers - but the difference in this case is quite noticeable on top surfaces and I need to find some way to address it....

Unstable Z (@calibration)

Running My Z calibration seems to jump by at least 0.6mm after i changed BL touch Z offset. e.g. i adjust the "z offset" by 0.05mm and the physical offset changes from the usual range of -0.1 to +0.1mm, to the something like -0.2mm to +0.8mm - with a large random element to it. Config snip (including previous value): BL Touch...

Unloading during printing

Hello, my printer decided last night to initialize an unload filament command during printing, I tried to print a previous gcode that worked, but got the same unload. The peinthead stops, extrude a big blob of plastic then unloads. Any ideea? Ratos debug attached...

Filament detector doesn't seem to act properly

I have it installed now, but had to unplug it. As it is no... - With filament loaded it displays "empty" in Klipper, refuses to print unless I disable it with the toggle, and the toggle resets after each print - If I use Klipper to unload filament it seems that everything ejects fine - If I feel filament its triggering the extruder to eject (stepper spinning backwards) - Lighted ring is working, though not indicating properly...

odd behavior involving tool head fans

I'm going through the commissioning process, and the first issue I came across was that my part cooling fan was stuck at Mach 12. After days of trial and error, I randomly stumbled on the idea to move the PWM wire from the tool board to the control board... and weirdly, it worked? (I have no idea why.) At that point, I just accepted it and moved on. ...

_BEACON_APPLY_RUNTIME_MULTIPLIER

Hi. I run into "Error evaluating 'gcode_macro _BEACON_APPLY_RUNTIME_MULTIPLIER:gcode': ZeroDivisionError: float division by zero". It only happens during printing if I change the Z-offset or toolhead. I know some users have already brought this up, but no solution to it, or I missed it. I have decommissioned twice with no success. I have done VAOC and end-stop calibration twice, but nothing. What could it be? Thanks in advance for your help.

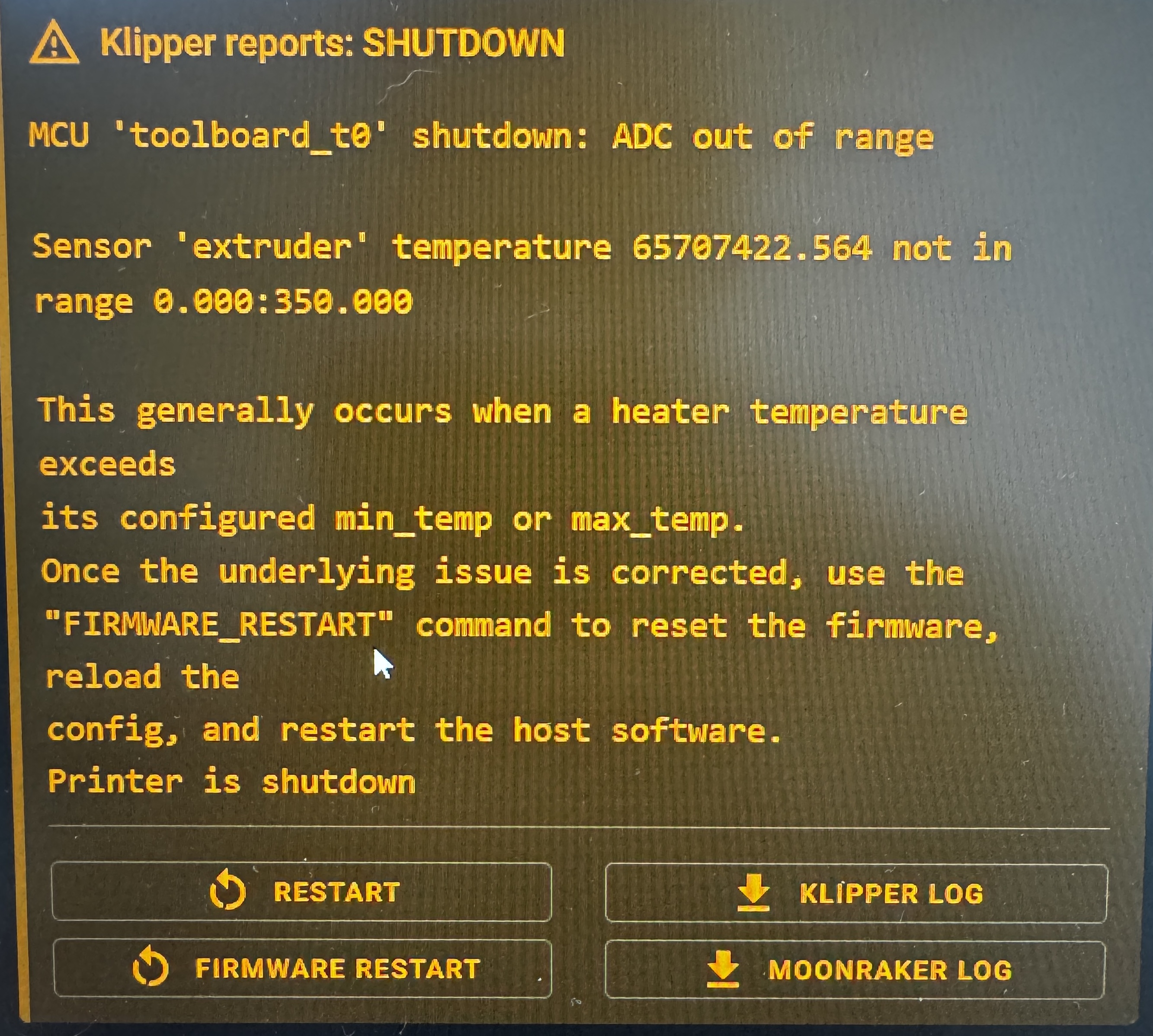

Am I screwed?

I was rebuilding my toolhead... went to heat up the hotend and noticed it wasn't heating up, after taking the hotend off, i noticed the heater wires have come off the ceramic of the Phaetus Rapido.. (not sure if it's the 2, it came with my VC3.1 kit about 3 years ago)... what can i do? am i screwed, or can i fix it myself?
No description

Can't figure out why this noise exists...

Hey gang! For the life of me, I can't figure out where this horrid noise is coming from, this is just on the Y movement, during IS graph generation, but also appears during printing. Can someone point in in the direction this might be coming from? I've taken the hotend fan off because I thought it might have been resonance with the fan, but it still exists. Recently installed the RR 3.1 tool head upgrade, but the previous EVA also made the same noise. RR VCore 3.1 300, PUHF2, Pinda...
