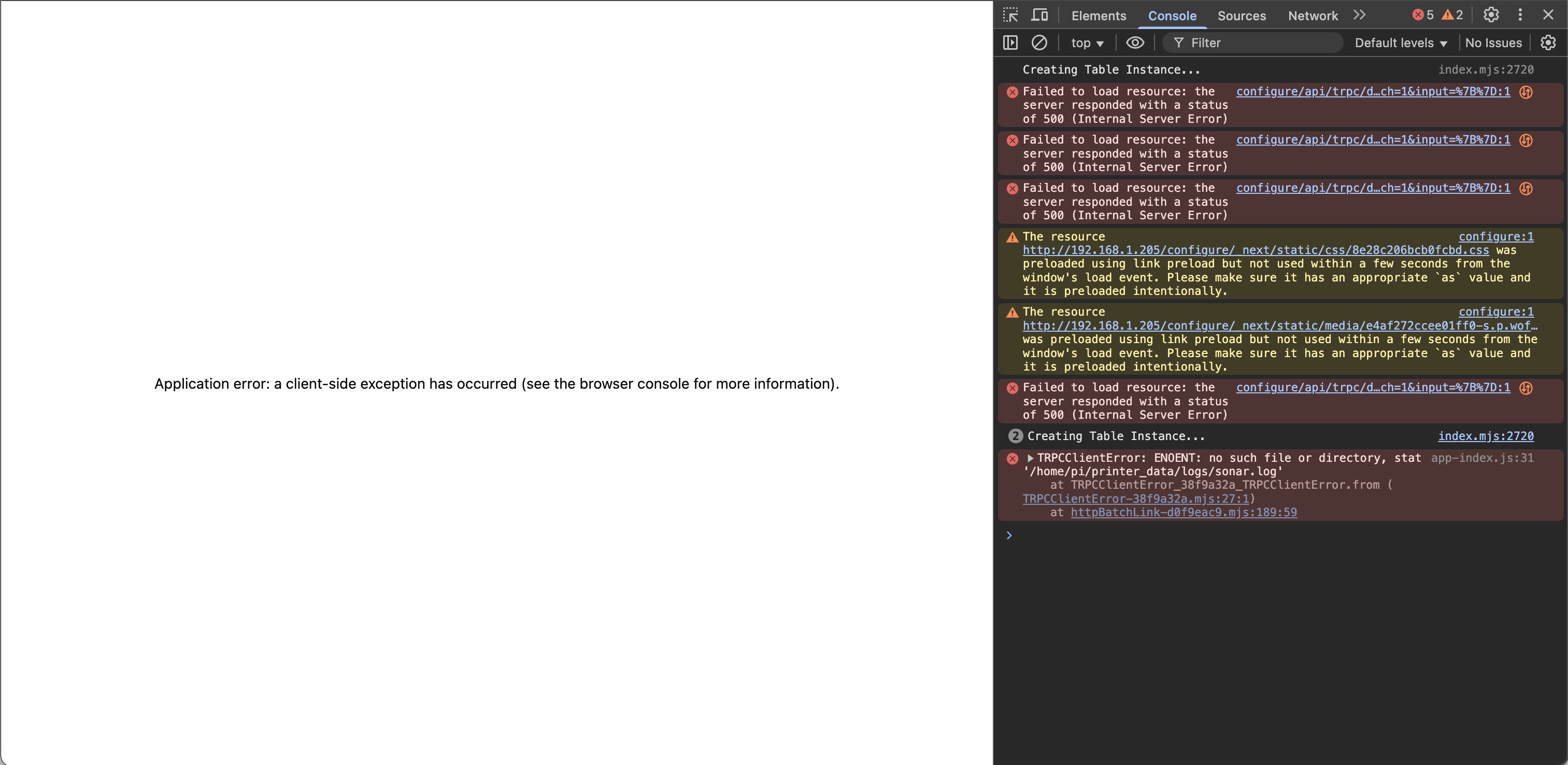

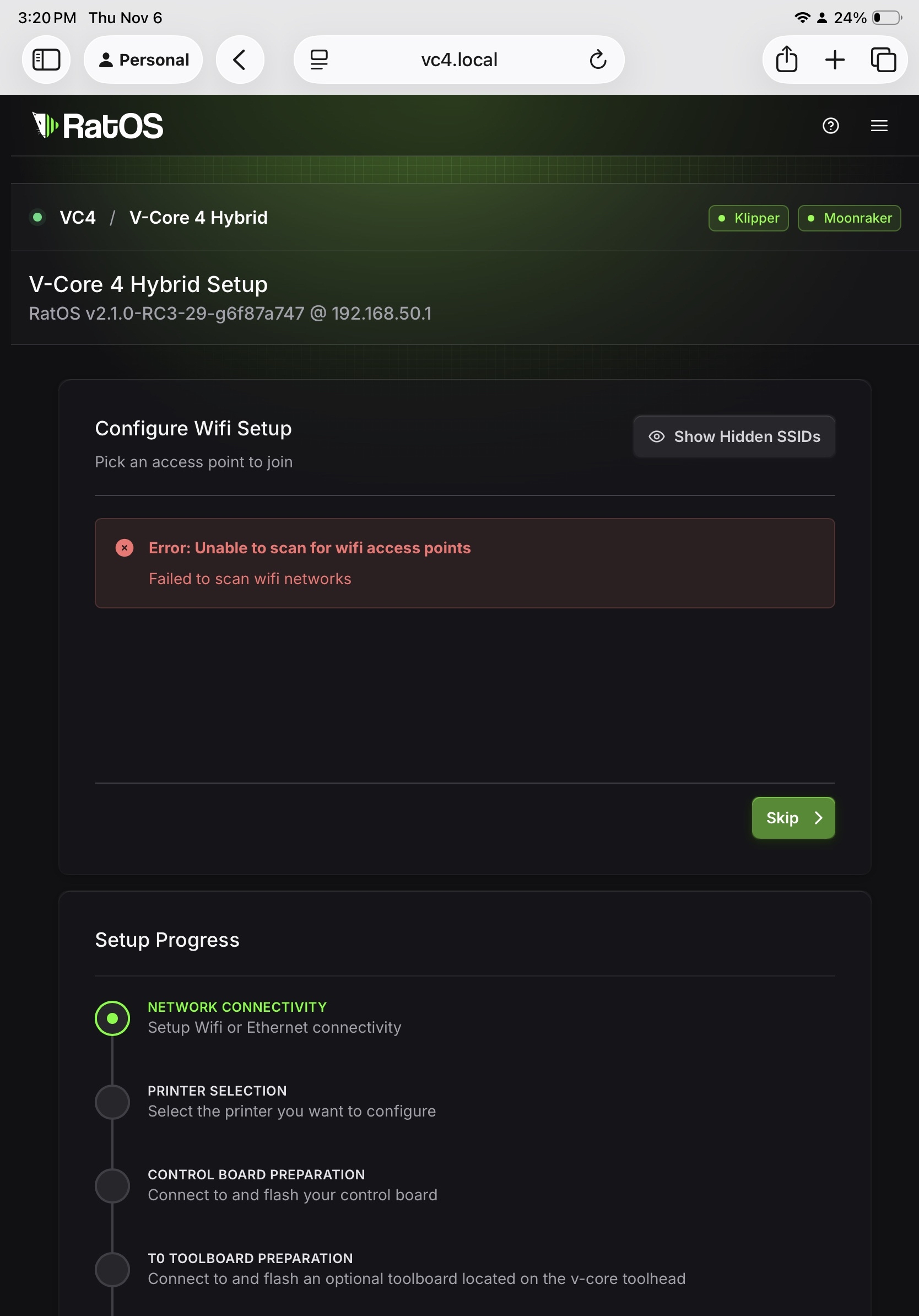

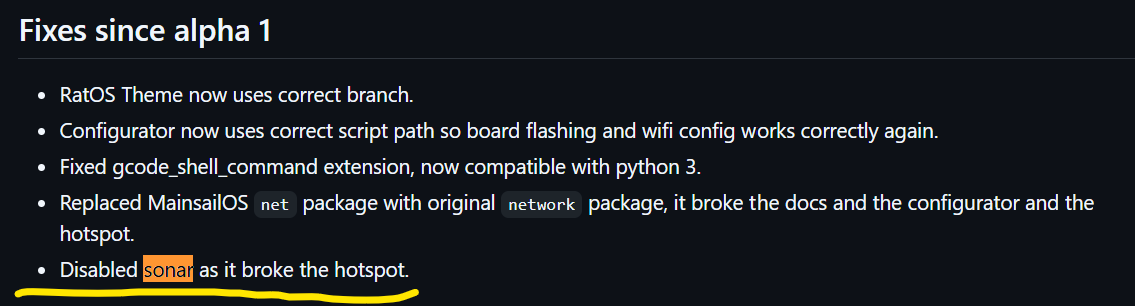

Existing command TEST_RESONANCES not found in RatOS override

Hope someone can help me with this.. I have freshly installed and updated ratos to 2.1.0 RC3. From the first step to set up the wifi I see the error in the subject. First updated ratos, then configurator and then everything else. I still see this error. ...
No description

No beacon model on first calibration

Hi! I can't go through the "initial_beacon_calibration" process. After homing x and y everything stop with "no beacon calibration model loaded". It's not the first printer with ratos 2.1 and beacon but it's the first time I get that error. Everything is up to date.

A/B steppers skipping.

I ran my configurator with LDO-42STH48-2504AC and TMC5160T Pro V1.1. Im running the... TMC5160T Pro V1.0 and the LDO 42STH48-2804AH steppers. Current 1.5...
Solution:
Yeah, turn it on - you are under currenting the steppers

Realtime Analysis - SciChart too old.. error

I'm getting this screen when trying to access the Analysis Tool.. Sorry! This version of SciChart is too old to be used for the community edition. Please update to the latest version. RatOS fully updated.....
Solution:
Fixed. Update ready in 5 minutes.
No description

Post-Processing in RatOS - What is ti for?

What is Post-processing for in RatOS v2.1? Especially for single carriage printer?
Solution:
just to give you one example. Every single slicer moves after priming with high speed to the print area at the first layer height. on printers like the v-core 500 with their big bed this can ead to scratched surfaces

octopus

Can anyone tell me if ratos can run 5160's?

Performance mode?

Vcore 3.1 500 octopus board with EBB 1.2 toolboard, orbiter 2.5 extruder, phateus rapido hf hot end. I notice in the machine setup wizard if I enable "performance mode" it changes all the stepper motor drive current from 1.1 to 1.6 except for the extruder motor which remains at .707 regardless of performance mode or not. I'm looking to speed the machine up. My question is if all the other motors current are upped doesn't the extruder current have to go up as well to keep up with the new speed of...
Solution:
0.707 is already the rated current for the extruder motor. Bumping it higher will cause it to overheat.

RatOS v2.1.0-RC3-20-g90dce855 First Layer Inconsistencies

I am probably doing something wrong regarding beacon contact usage. I have followed the guide here several times without ultimate sucess. https://os.ratrig.com/docs/configuration/beacon_contact. I am running the initial calibrate, getting success with some gantry twist, have tried automated Beacon Scan Compensation as well. Seemingly I have an issue where after the prime blob it adds the temp offset comp but its either too high or too low without much consistencies. If I turn off temp offset comp and manual step during first part it completes fine. I run this in console, SAVE_Z_OFFSET as instructed. Next print its usually too close but ocasionally not, I am not seeing anything on the nozzle. any advice on how to debug this? Still learning the ratos config file structure and what impacts what and best beacon workflow....
Solution:
Hey! Please try adding the heatsoak variables here: https://os.ratrig.com/docs/configuration/beacon_contact/#new-bed-and-hotend-heat-soaking-time and then redoing BEACON_RATOS_CALIBRATE Additionally (if that doesn't do the trick) try reversing your hotend fan (so that it draws air through the heatsink instead of pushing it through)....

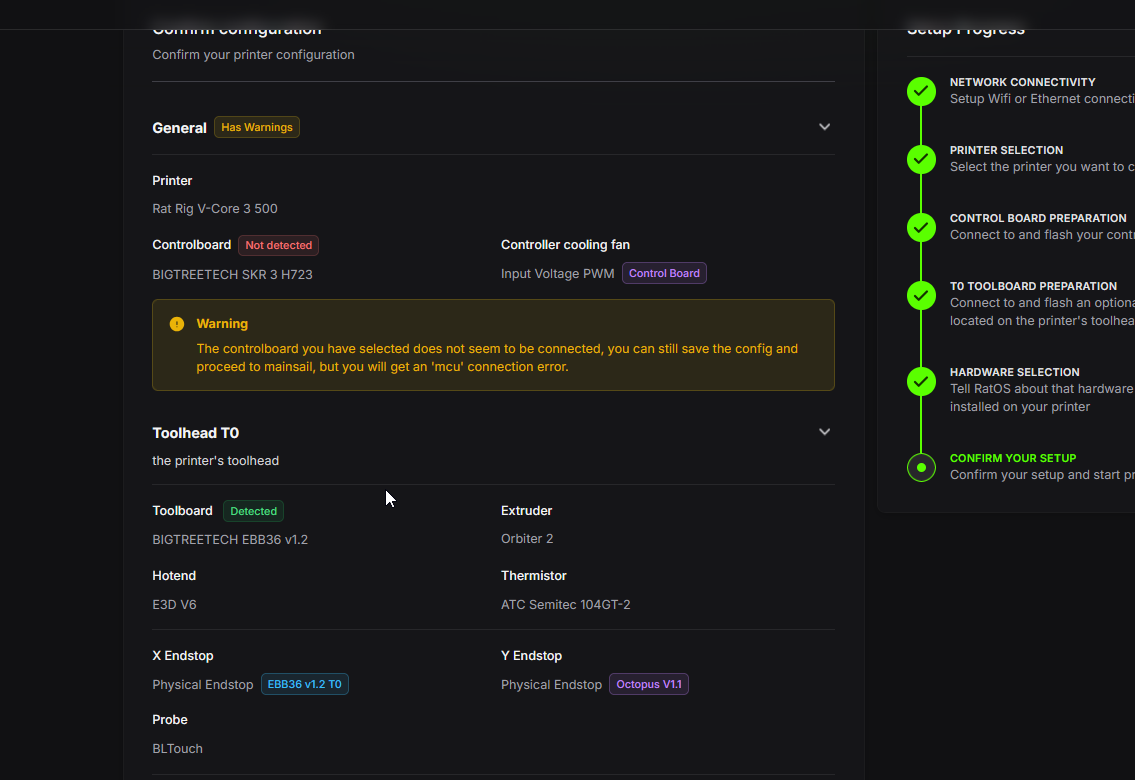

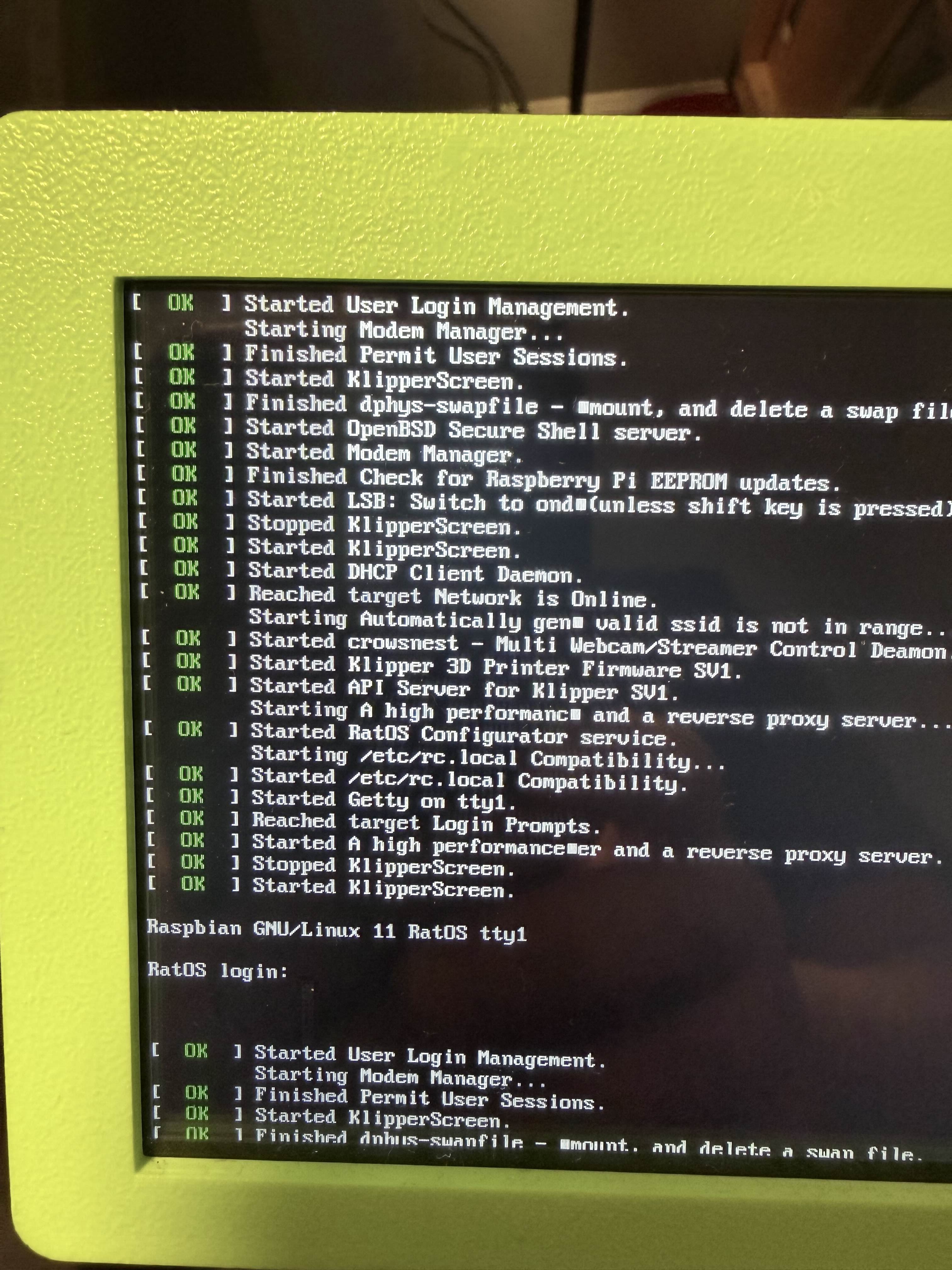

ratos 2.1-rc2 issues (no initial config)

I created a fresh SD card using the July 28 ratos 2.1.0-rc2 image for rpi. On first boot, I got a "unknown config object 'bed mesh'" error. I attempted to update all the repos to the latest, starting with the ratos configurator, and now the ratos repo is marked invalid/uninitialized by the management tool: and also I get the error: Existing command 'TEST_RESONANCES' not found in RatOS override and the initial config tool never comes up. am I missing something totally obvious that everyone should be remembering, like I was supposed to go to ratos/initial-config instead of just ratos or something?...
No description

BTT eddy config with G28 called recursively, and calibration failed.

Hey everyone, so I had some trouble with installing the BTT eddy DUO to the existing RR v-core 3.1 500, with the klipper updated to the latest commit to acquire the native support of BTT eddy. The firmware is configured according to the BTT documentation, using USB connections. https://github.com/bigtreetech/Eddy/raw/master/Images/compile.png?raw=true ...
Solution:
To wrap up the whole journey and to help other that looking for solutions: 1. Make sure the BTT eddy is "2~3mm ABOVE" the nozzle, in my testing, you can still have successful calibration up to ~5mm-ish.(Creds to @EODesigns ) 2. DO NOT use the probe mounts from the BTT official repo(https://github.com/bigtreetech/Eddy/tree/master/3D/EDDY_PRINT_PARTS/EVA3), this mounts will lift the probe too high, causing GUARNTEE failure when doing "PROBE_EDDY_CURRENT_CALIBRATE_AUTO CHIP=btt_eddy". 3. To solve the above problem, I design a height-adjustable BTT eddy probe mount, from remixing existing induction probe mount, which you can find here(https://www.printables.com/model/1124920-btt-eddy-adjustable-probe-mount-for-ratrig-eva-3-s)...

New Build Fresh Install everything new Beacon Issues

per @miklschmidt request i made the post for you. Im trying to do input shaper and keep getting this error, beacon is calibrated, homes does all that just fine but input shaper will not work from klipper screen or web, cant test belts either, latest ratos 2.1 everything updated, vcore 3 500
No description

Input Shaper values resets randomly

Input shaper values I put in Ratos.cfg randomly resets to 0. Have I done anything wrong, or what can I do to fix? Vcore4 300, RatOS v2.1.0-RC 2....

Mercury One.1 support for rat os 2.1

support for mercury one.1 in rat os 2.1

Vc3.1 Hybrid/ Ratos 2.1 Y0 position

How do I get Y0 to the front left of the Printer? It currently is on the back right side and I'm not quite sure how I'll get it to the left front so it is X0/Y0. The z tilt positions are also swapped Back left and back right, but I guess that has to do with Y0 nor being in the front left. As far as i know the vc4 hybrid homes t the front, but there has to be a way to change that to the back right.

Unknown g-code generator

Hello I just updated to ratod 2.1 and when i slice my files in Cura with settings I've always used i get this error. Warning: Unknown g-code generator The file was not produced by a recognised G-Code generator, therefore it cannot be post-processed or analysed, and its suitability for printing cannot be determined....

Wrong pin number ADXL345 SKR Pro 1.2

When using Ratos 2.1.0 configurator and selecting ADXL345 with MCU connection it sets the CS pin to PB12 but when using default connection it´s PA15. Not sure if i missed somthing but that what i get....

Bed Thermistor Error

[heater_bed] control: pid pid_kp: 68.203 pid_ki: 2.842 pid_kd: 409.216...
No description

how to fix error loading kinematics 'ratos_hybrid_corexy'

i just finished building a vcore4-300 idex and after using the update manager to get everything up to date im now getting "Error loading kinematics 'ratos_hybrid_corexy'" does anybody know how to resolve this, im pretty lost at the moment. thanks.
Solution:
im going to reflash the pi and start over. im so early in the process that there isn't much to lose.

Configuration help

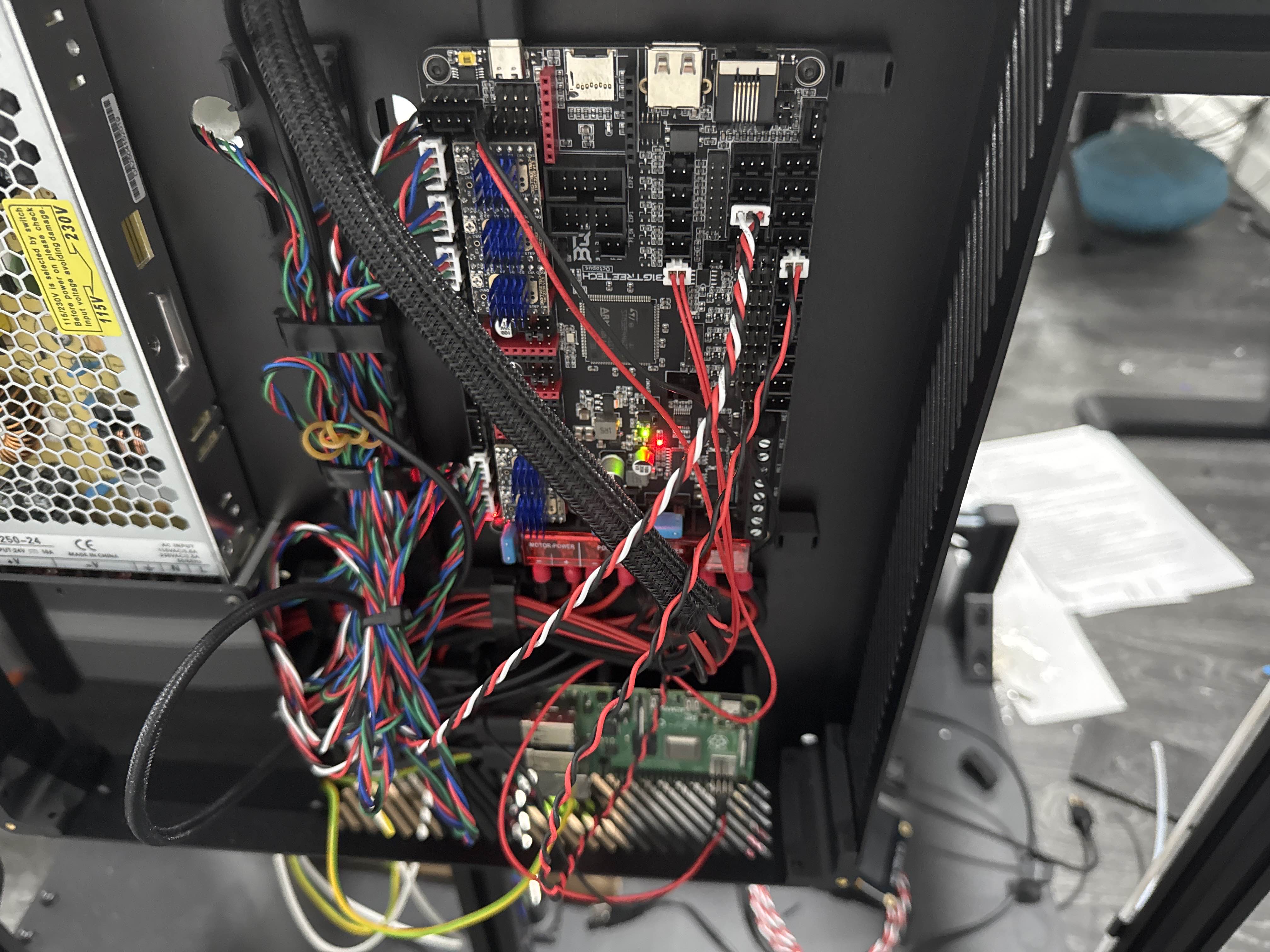

Hello all, I am working on a V0 (will attach current photo below) but want to add another 2 steppers to the Z. I intend to use the TRI-ZERO platform. My question is, would it be possible to add another mcu to my cfg as I have another E3v3? In doing this would it be done in the exact same way as it is in mainline klipper? Or would it be better to just buy an octopus and use that....
No description

IDEX copy on a VCore 500 - "Move out of range - -59.901 366.165 0.464 [33212.731]"

Trying to do an IDEX copy on a VCore 500 and I get "Move out of range -59.901 366.165 0.464 [33212.731]" any suggestions on what to check? I can do a single print without a problem. I've tried different sizes and it passes the initial check but it will start printing and then I get the error.
