Will this battery work with corne + nicenano/niceview?
Hi all!
I am a customer from Belgium and I am wondering if this battery would work with the corne keyboard (with the nicenano and niceview)
Thanks in advance!
https://www.amazon.com.be/-/nl/Batterij-301230-elektronica-oplaadbare-smartwatch/dp/B08K99LQJW/ref=sr_1_1?crid=30X8D3S2ZPZ82&dib=eyJ2IjoiMSJ9.-1PBaJRylMqtwzOBY1Ipx35F6312Syzyy3TJbHqvx583mSGawymA-c-V92xvu5sT4CULVMkK3uBGucwbnEnrITuJc4XRmWuj2qHR79gAC2a_De4rZ7ExGihK75ZBP7F1YKnk3er4Yett5DadIAgPHNAREqCVjiTfASMy57aD06an4JAnT2nuKrmDbpPL1uIwKJEuSo0Ayfwqx3rDpCLNLhfQvpNZltsm1okLhgWwY8iO_96ZsmvCjuZEU8h2yvuG.fTfRjKh7NPMMUC0v0haGpetvVrfOFInOzfwON0FbXFo&dib_tag=se&keywords=301230&qid=1732557754&sprefix=301230%2B%2Caps%2C71&sr=8-1&th=1

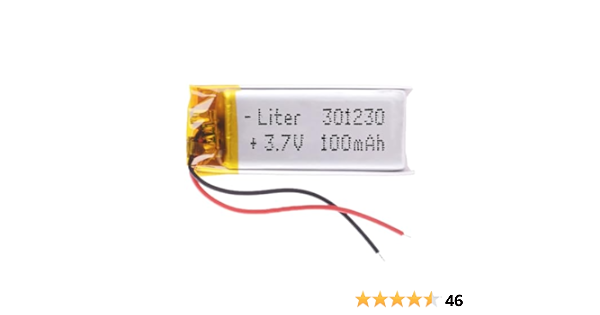

Batterij 301230 LiPo 3,7 V 100 mAh 0,37 Wh 1S 5C Liter Energy Batte...
Geen connector! LiPo batterij 3,7 V, 100 mAh Batterij 301230 30,5 x 12 x 3 ± 0,5 mm Controleer de afmetingen voordat je het product koopt. 1 batterij Geschikt voor: - Telecommunicatie: mobiele telefoon, webtelefoon, intercom, Bluetooth-headset. - Kantoorapparaten: laptop, laptop, PDA, draagbare e...
6 Replies
And would this one work? https://www.amazon.com.be/-/nl/DronePost-601230-oplaadbaar-telefoon-LED-licht/dp/B09QZ1MMXC/ref=sr_1_5?crid=30X8D3S2ZPZ82&dib=eyJ2IjoiMSJ9.-1PBaJRylMqtwzOBY1Ipx35F6312Syzyy3TJbHqvx583mSGawymA-c-V92xvu5sT4CULVMkK3uBGucwbnEnrITuJc4XRmWuj2qHR79gAC2a_De4rZ7ExGihK75ZBP7F1YKnk3er4Yett5DadIAgPHNAREqCVjiTfASMy57aD06an4JAnT2nuKrmDbpPL1uIwKJEuSo0Ayfwqx3rDpCLNLhfQvpNZltsm1okLhgWwY8iO_96ZsmvCjuZEU8h2yvuG.fTfRjKh7NPMMUC0v0haGpetvVrfOFInOzfwON0FbXFo&dib_tag=se&keywords=301230&qid=1732557754&sprefix=301230%2B%2Caps%2C71&sr=8-5&th=1
because it has a much larger mah

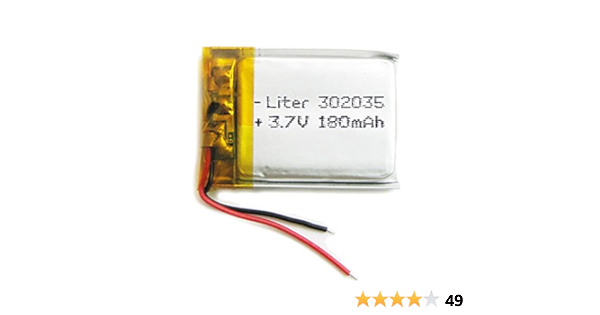

Accu 302035 LiPo 3,7 V 180 mAh 0,666 Wh 1S 5C liter energiebatterij...
Geen connector. LiPo-batterij 3,7 V 180 mAh Batterij 302035 37 x 20 x 3,5 ± 0,5 mm. Controleer de afmetingen voordat je bestelt. 1 x accu. Compatibel met: - Telecommunicatie: mobiele telefoon, webtelefoon, intercom, bluetooth-hoofdtelefoon. - Kantoorapparaten: laptop, laptop, PDA, draagbare elekt...
Yes, they will work. You will either have to solder the leads directly to the board, or find and crimp your own JST PH connector. Either way, be sure to match the polarity: red to positive (+), and black to negative (-)
The 301230 will fit nicely under a socketed nice!nano, whereas the larger battery would have to reside elsewhere.
Okay thanks! I am a bit clueless on how this JST PH connector thingy works so does buying smth like this allow me to create a jst ph connector and plug it in? https://www.amazon.nl/Lyeteung-Pin-Vrouwelijke-Mannelijke-Krimpkontakt/dp/B0CDG8ZSX4?dib=eyJ2IjoiMSJ9.usXE0-3d5Rr9NTCLCd6oyGqK7c4B4qVVb3GkoC_BZd3DqRxOE0sfIL59zcRAakD5OmHIUsnyPBFFqniixhkvXWDYBSC12gn-RNNEz22NmPvzv9HHs2yPR4pSwDQheLYOHTPrLqOYO_aauGOiQ3KcB9B4ZKGBJXv5WOChhZXHexHGSslIZsjVKC8qnEw1KyDiN3wu77FkA6CBpfC8NCheewNINzTnms0AwGMxVEIV0F0CrOs1Hdxv-_fRNo54tQ7ISUvpnmC6yyyLbB5ZY58D1c9eyBSmpcEmOXo-BUWoahw.oQqE3-R-6XN647zXN3Xo-8vgaq53XnXNjxqNjePYyLo&dib_tag=se&keywords=jst+ph+2.0&qid=1732637246&sr=8-11

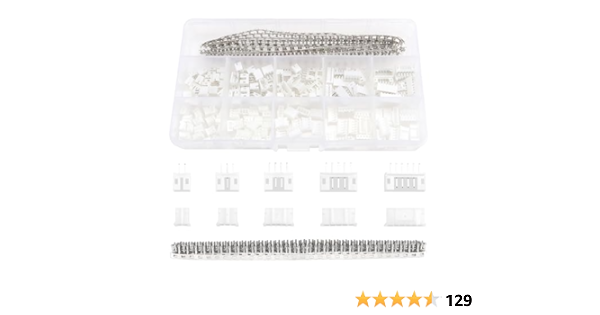

Lyeteung 420 Stuks 2.0 mm JST-PH Connector Kit, JST-PH 2/3/4/5/6 Pi...
Lyeteung 420 Stuks 2.0 mm JST-PH Connector Kit, JST-PH 2/3/4/5/6 Pin Behuizing Vrouwelijke en Mannelijke Stekker, met Vrouwelijke Pin Krimpkontakt
do I need to solder the ends or smth?
No solder needed, but you will need a way to cleanly crimp the metal sleeves around the ends of the wires before pushing sleeve and wire into the small plastic housing
There is a specialized tool for crimping them. You might be able to do it with pliers, but it might be hard to get the shape just right without the special tool
Pliers are fine, watch a video on YouTube, you just need to crimp the back part of the metal bit. Then each half slides right into the plastic housing.
Solder is better if you have it, since it creates a mechanical connection.
