Universal Blue•4w ago

Internet connectivity on a windows VM

As the title says how can i get internet accses on a libvirt virtual machine running windows? the strange thing is this WAS working oottb before but stopped after an update or something I can see the network adapter from the windows VM and it even has an ip adress but no internet connectivity

Solution:

https://github.com/HikariKnight/vfio-setup-docs/wiki/1.-Setting-everything-up#local-host-only-connection-between-host-and-guest

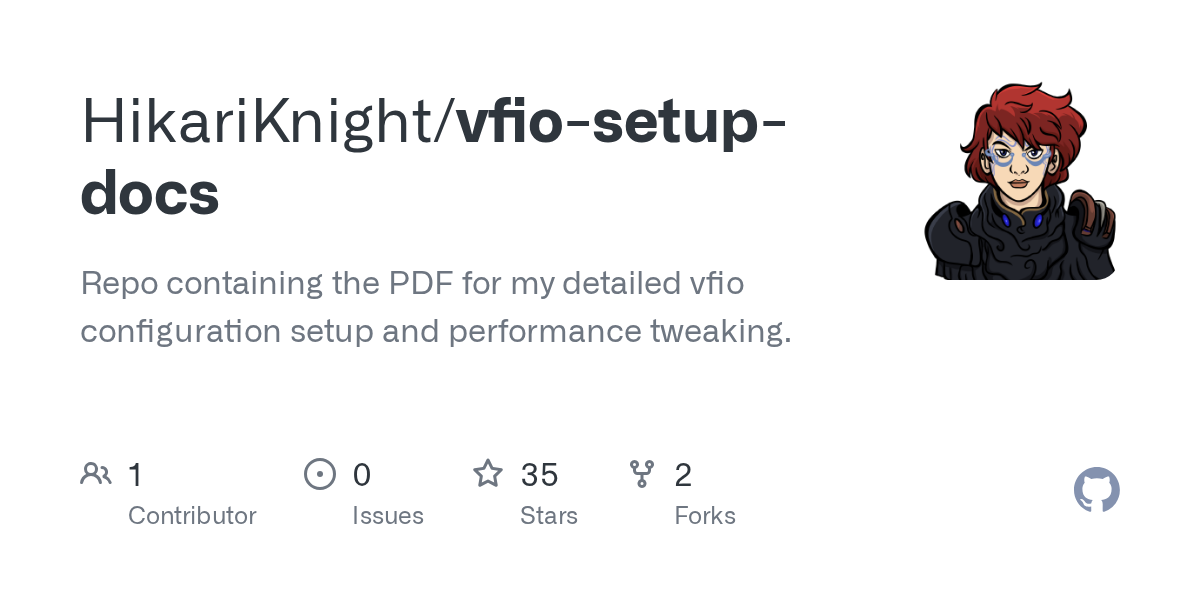

GitHub

1. Setting everything up

Repo containing the PDF for my detailed vfio configuration setup and performance tweaking. - HikariKnight/vfio-setup-docs

Jump to solution

13 Replies

zany130OP•4w ago

this is how I have my network configured

<interface type="network">
  <mac address="52:54:00:d4:44:42"/>
  <source network="default"/>
  <model type="virtio"/>
  <link state="up"/>
  <address type="pci" domain="0x0000" bus="0x01" slot="0x00" function="0x0"/>
</interface>

<interface type="network">
  <mac address="52:54:00:d4:44:42"/>
  <source network="default"/>
  <model type="virtio"/>
  <link state="up"/>
  <address type="pci" domain="0x0000" bus="0x01" slot="0x00" function="0x0"/>
</interface>

HikariKnight•4w ago

give output of sudo virsh net-list if it says default is not autostarted then sudo virsh net-autostart default

zany130OP•4w ago

sudo virsh net-list
[sudo] password for zany130:
 Name      State    Autostart   Persistent
--------------------------------------------
 default   active   yes         yes

sudo virsh net-list
[sudo] password for zany130:
 Name      State    Autostart   Persistent
--------------------------------------------
 default   active   yes         yes

HikariKnight•4w ago

it should just work then if you have the virtio drivers installed in windows if you dont then you need to change the model to something else that will work in windows without a driver like the e1000 or something i think its called

zany130OP•4w ago

Yeah it detects the adpater as a redhat virtio something (forgot exactly) and it even sees an ip address and everything but I can't connect to any website.

HikariKnight•4w ago

do you need the VM to communicate with the host? as in do you need them to be able to talk with each other over the network (ie; samba filesharing)

zany130OP•4w ago

Yeah I need to share files between the two but I haven't set that up0 yet not sure if a bridge is better I just left the vm at default settings. here is what windows shows

HikariKnight•4w ago

i use 2 virtual nics for that as i need the vm directly attached to my network and i need the host to communicate with the guest over network making a bridge that works is a PITA and i always forget how to do it properly so i just use 2 nics 1 macvtap interface and i link it to the real nic i use 1 isolated network that is just dhcp with no routing (for communicating with the host)

Solution

HikariKnight•4w ago

https://github.com/HikariKnight/vfio-setup-docs/wiki/1.-Setting-everything-up#local-host-only-connection-between-host-and-guest

GitHub

1. Setting everything up

Repo containing the PDF for my detailed vfio configuration setup and performance tweaking. - HikariKnight/vfio-setup-docs

HikariKnight•4w ago

there is a guide on adding the isolated network which i always add as the 2nd nic 1st one is always the macvtap device this lazy way to avoid making a bridge has worked for 8 years so :clueless:

zany130OP•4w ago

LOL thanks Ill take a look. It's strange the default stoped working but maybe it's a good chance to setup a share between the host and the guest LOL.

HikariKnight•4w ago

yeah so when you use the share between host and guest use the "isolated" ip for both since macvtap does not allow communication between host and guest

zany130OP•4w ago

Yup worked like a charm have internet accses on my VM thanks ! Again no idea why the default wasn't working :zerotwoshurg:
