SVG A elements not created correctly

When using an <a> element with <Show> or <For> inside an inline SVG element, we get the namespace wrong. Example:

      <svg height="100" width="100" style={{ background: "#000" }}>
        <Show when={true}>
          <a href="https://example.org">
            <rect fill="red" x="25" y="25" height="50" width="50" />
          </a>
        </Show>
      </svg>

      <svg height="100" width="100" style={{ background: "#000" }}>
        <Show when={true}>
          <a href="https://example.org">
            <rect fill="red" x="25" y="25" height="50" width="50" />
          </a>
        </Show>
      </svg>

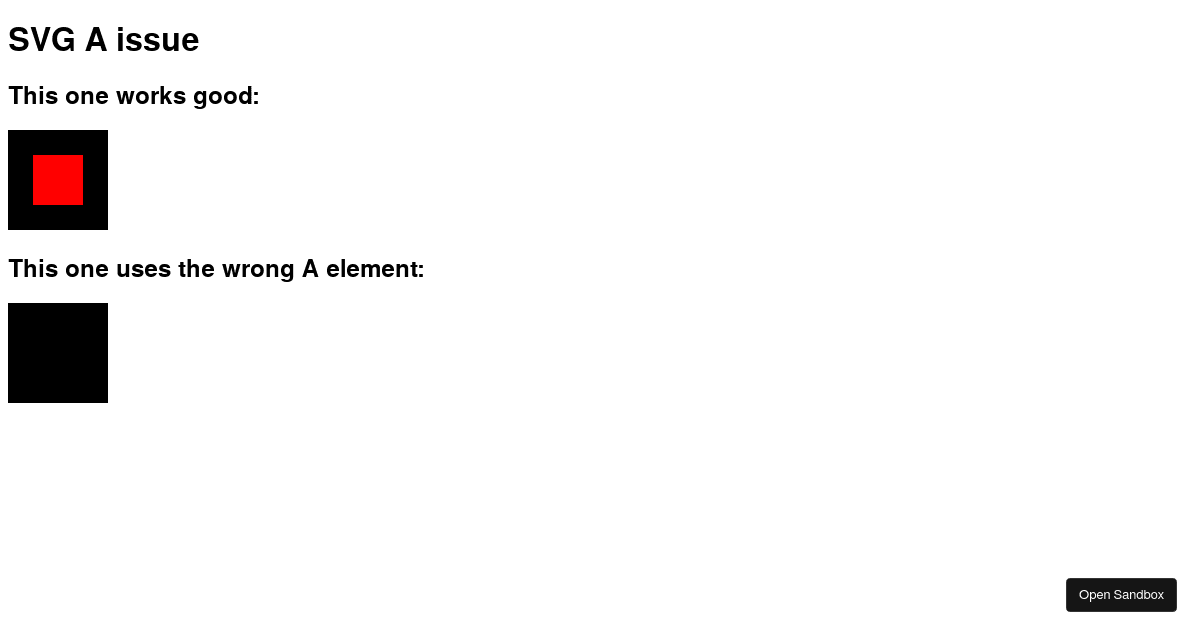

The namespaceUri of the "a" element is "http://www.w3.org/1999/xhtml", so it breaks the rendering of the SVG. The desired namespaceUri would be "http://www.w3.org/2000/svg". Here's a code sandbox showing this issue in action: https://codesandbox.io/s/flamboyant-euclid-qy5hq4?file=/index.js:402-651 There are two copies of the same <svg> element, the first one does not use <Show> and renders correctly. The second one uses <Show>, and does not render the content of the <a> element, as the namespace of the <a> element is incorrect. I'd appreciate any pointers on how to fix this!

urish

CodeSandbox

flamboyant-euclid-qy5hq4 - CodeSandbox

flamboyant-euclid-qy5hq4 by urish using babel-preset-solid, solid-js

9 Replies

mdynnl•17mo ago

as a could be both html and svg element, we can't really statically analyze what namespace it'll be in and defaults to html. you could workaround this by wrapping with <svg>

mattasia•17mo ago

Tangently, does typescript provide any JSX typing that you could say when a sibling of <svg> this tag applies, I ask, because I've seen tags behave differently in terms of required props in different circumstances, for example <Field> of modular forms is smart enough (TS typing i guess) to make the 'of' prop optional if a child of <Form>

mdynnl•17mo ago

i think that's only possible if you somehow inferred it from somewhere, which you can't for global/module types i just took a glance of modular forms docs

import { createForm } from '@modular-forms/solid';

type LoginForm = {
  email: string;
  password: string;
};

export default function App() {
  const [loginForm, { Form, Field, FieldArray }] = createForm<LoginForm>();
}

import { createForm } from '@modular-forms/solid';

type LoginForm = {
  email: string;
  password: string;
};

export default function App() {
  const [loginForm, { Form, Field, FieldArray }] = createForm<LoginForm>();
}

REEEEE•17mo ago

Wrap the a in a foreignObject tag

mdynnl•17mo ago

Form, Field, etc's types are inferred from createForm<LoginForm>() but these can't be inferred

import { createFormStore, Form, FormStore, Field } from '@modular-forms/solid';

import { createFormStore, Form, FormStore, Field } from '@modular-forms/solid';

mattasia•17mo ago

ah I see, it's a different Field return from createForm than imported, ah that makes sense

urishOP•17mo ago

Thanks for the suggestion! The <svg> workaround works - but it does create an extra <svg> in DOM, around the <a> tag. I'm not yet sure if that would be a problem - it's definitely better than nothing, though, I wish there was a way to somehow tell what namespace the tag would be in. I tried adding a xmlns="http://www.w3.org/2000/svg" to the <a> element, but unfortunately, this didn't do the trick.

REEEEE•17mo ago

Try this maybe?

urishOP•17mo ago

Tried that too, but unfortunately, it didn't work
