reverse y axis
My newly build vcore 3's Y axis is inverted. i tried fixing it in the printer.cfg(by putting a "!" in front of the y axis), but that just switched the x and y axis. How can i fix this issue??
2 Replies
absent-sapphire•16mo ago
to clarify I tried "dir_pin: y_dir_pin # Add ! in front of pin name to reverse Y stepper direction" but that didn't work, and just reversed the two axis
absent-sapphire•16mo ago
I found the cause of the problem. In case anyone has the same problem refer to:

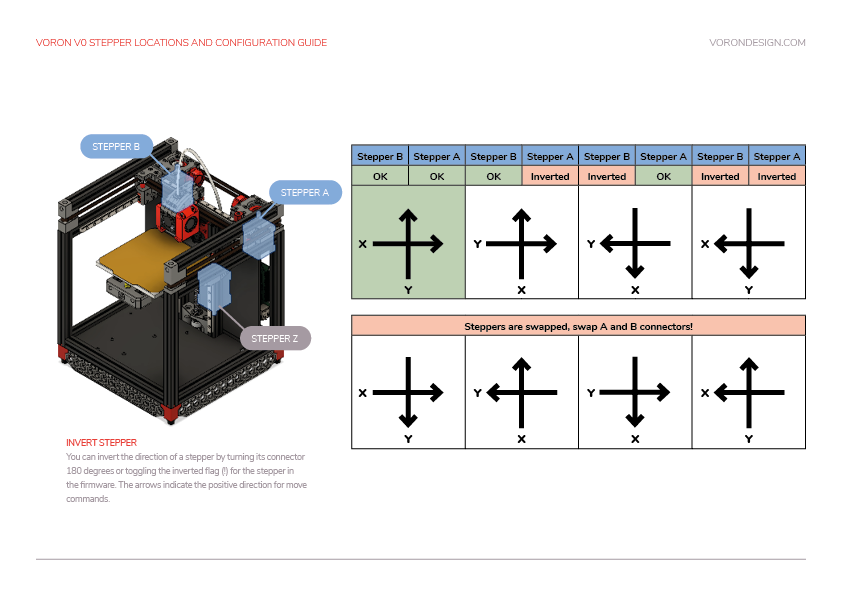

https://docs.vorondesign.com/build/startup/images/V0-motor-configuration-guide.png
