✅ WPF XAML Designer

Hello, my xaml designer do not work but i can't figure it out why. There is an exception which say it's not able to find the resource " 'resources/images/png/manual/[email protected]'" but this resource isn't use in my page, this resource is used in the UC which is in this page. the fact is that my xaml designer work well for the UC but when i add this UC to the page, the xaml designer of the page trigger an exception. The app have no problem when i run it i just want to know why the xaml designer trigged and exception

34 Replies

Buddy•2y ago

Do not use the designer $rulesofwpf

MODiX•2y ago

Rules of WPF:

❌ Avoid the WPF Designer to eliminate a category of confusing bugs
❌ Don't rely on Margin as the primary tool for layouts
❌ Avoid writing UserControls or subclassing to extend a default control -- use Behaviors instead (Microsoft.Xaml.Behaviors.Wpf)

✅ Write XAML by hand and autoformat with "Ctrl K,D" or XAML Styler
✅ Rely upon XAML Hot Reload to design your app's UI at runtime
✅ Use layout controls (Grid, DockPanel, etc) to support proper resizing
✅ Use data binding to eliminate glue code and state synchronization issues
✅ Use collection controls and DataTemplate to dynamically create lists of controls
✅ Learn MVVM to create maintainable apps
✅ Use the Dispatcher to update controls from non-UI threads
✅ WPF's default controls can be easily modernized via $wpfuilibs
✅ Include relevant XAML, code-behind, and ViewModel code for questions when possible

Rules of WPF:

❌ Avoid the WPF Designer to eliminate a category of confusing bugs
❌ Don't rely on Margin as the primary tool for layouts
❌ Avoid writing UserControls or subclassing to extend a default control -- use Behaviors instead (Microsoft.Xaml.Behaviors.Wpf)

✅ Write XAML by hand and autoformat with "Ctrl K,D" or XAML Styler
✅ Rely upon XAML Hot Reload to design your app's UI at runtime
✅ Use layout controls (Grid, DockPanel, etc) to support proper resizing
✅ Use data binding to eliminate glue code and state synchronization issues
✅ Use collection controls and DataTemplate to dynamically create lists of controls
✅ Learn MVVM to create maintainable apps
✅ Use the Dispatcher to update controls from non-UI threads
✅ WPF's default controls can be easily modernized via $wpfuilibs
✅ Include relevant XAML, code-behind, and ViewModel code for questions when possible

Buddy•2y ago

Margin is the spacing between elements, it is not absolute position or relative So if you resize the app, UI will mess up immediately.

ElioOP•2y ago

thanks but how i am supposed to add a space of 5 between each element without using margin ?

Buddy•2y ago

You must use layout controls.

ElioOP•2y ago

i will keep this seems to be really useful 😮

Buddy•2y ago

And Margin is fine if it's below 30.

✅ Use layout controls (Grid, DockPanel, etc) to support proper resizing

Also you have hot reload, which means you can just run the app and change the XAML, and the running app will change immediately upon file save.

ElioOP•2y ago

i already knew that i use it everytime ahah ok so i'll keep it in mind that xaml designer sucks

Buddy•2y ago

But regarding the image not being found, is it marked as a resource?

ElioOP•2y ago

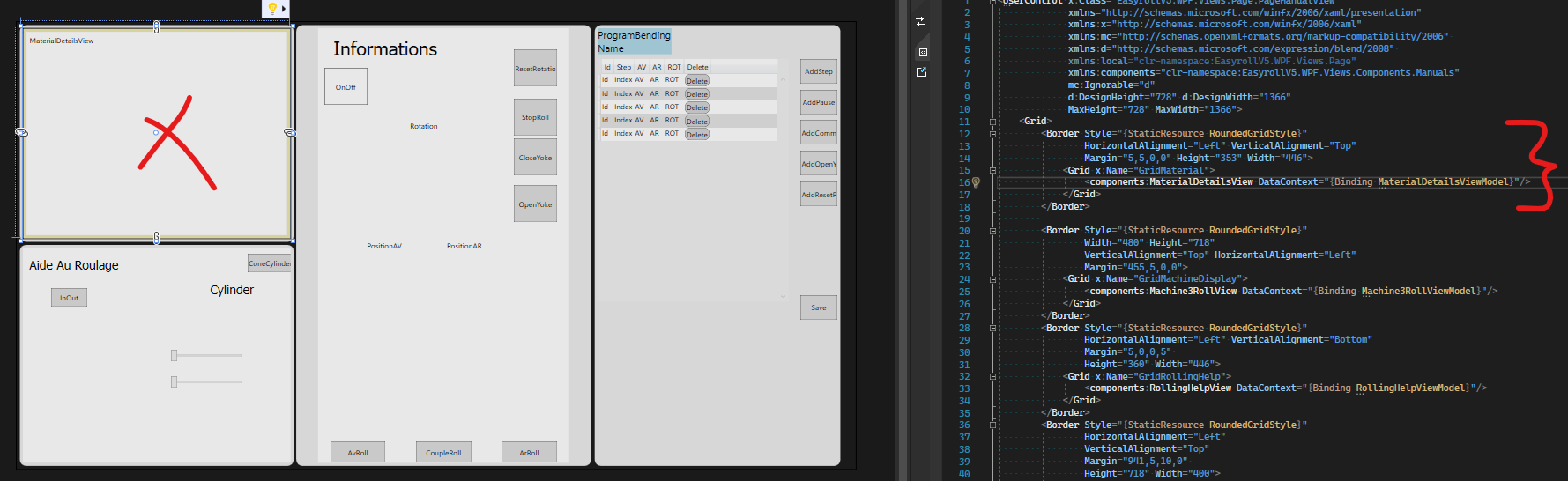

yup everything work but when i had the usercontrol to my page it says that the resource isn't find and i don't know why the page try to find it if it's in the usercontrol

ElioOP•2y ago

Buddy•2y ago

Have you tried renaming it to something that doesn't contain special characters? Something common like Material1.png

ElioOP•2y ago

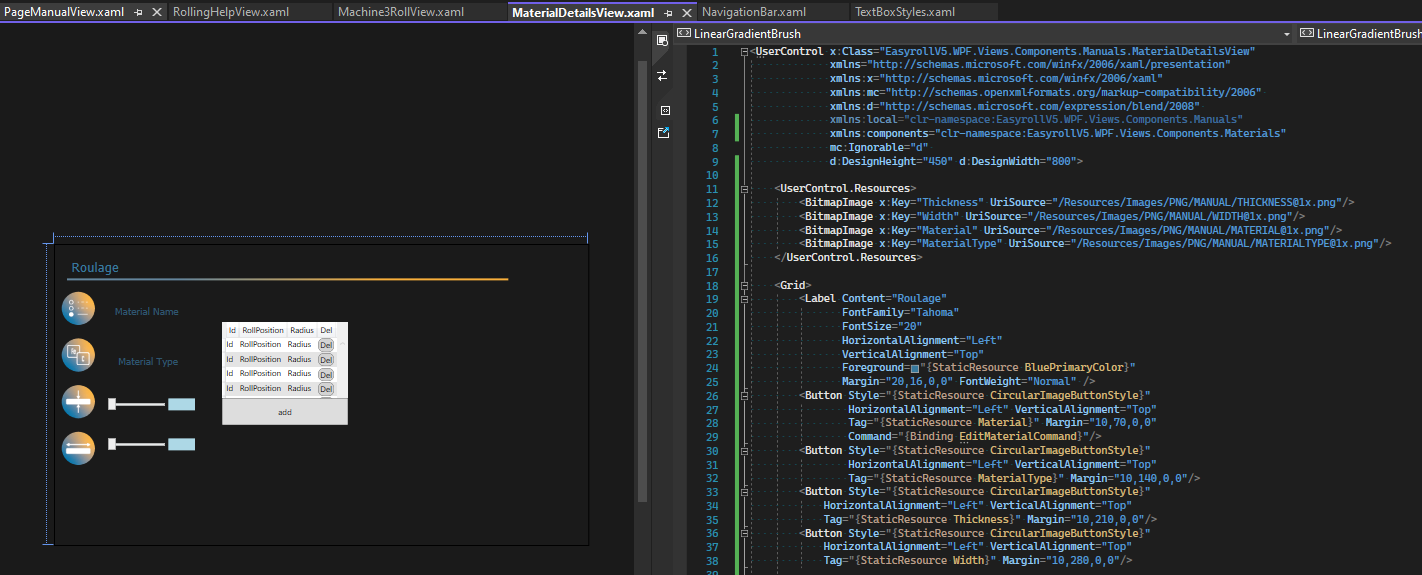

no i didn't tried cause my UC didn't trigger any exception and the image was well displayed but i'll try

ElioOP•2y ago

same error impossible to find the resource

Buddy•2y ago

Wait, how do you load it? and where Please show the XAML $code

MODiX•2y ago

To post C# code type the following: ```cs // code here ``` Get an example by typing $codegif in chat If your code is too long, post it to: https://paste.mod.gg/

Buddy•2y ago

replace cs with xml (easier to read)

ElioOP•2y ago

https://paste.mod.gg/bmhufnfyxvbl/1

BlazeBin - bmhufnfyxvbl

A tool for sharing your source code with the world!

ElioOP•2y ago

what i've called page is the one containing the UC which trigger the exception

Buddy•2y ago

Is it an image component?

ElioOP•2y ago

the UC which is the problem is MaterialDetailsView

<Style x:Key="ImageButtonStyle" TargetType="Button">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="Button">
                    <Image x:Name="Icon" Source="{Binding Tag, RelativeSource={RelativeSource TemplatedParent}}" />
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

<Style x:Key="ImageButtonStyle" TargetType="Button">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="Button">
                    <Image x:Name="Icon" Source="{Binding Tag, RelativeSource={RelativeSource TemplatedParent}}" />
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

my button style nop i just add an image in the background of a button

Buddy•2y ago

Tag?

ElioOP•2y ago

i found this solution to set an image in the background of the button i don't know what's really tag 😅

<Button Style="{StaticResource CircularImageButtonStyle}"
                HorizontalAlignment="Left" VerticalAlignment="Top"
                Tag="{StaticResource MaterialType}" Margin="10,140,0,0"/>

<Button Style="{StaticResource CircularImageButtonStyle}"
                HorizontalAlignment="Left" VerticalAlignment="Top"
                Tag="{StaticResource MaterialType}" Margin="10,140,0,0"/>

here is how i use the button

Buddy•2y ago

I would just set the Content directly rather than to use Tag

ElioOP•2y ago

in the content ?

Buddy•2y ago

Tag is a boxed value of type object

ElioOP•2y ago

<Button Style="{StaticResource CircularImageButtonStyle}" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="10,140,0,0"> <Image x:Name="image" Source="{StaticResource MaterialType}" /> </Button> like this ?

Buddy•2y ago

Sure

ElioOP•2y ago

ok it simplier than what i was trying to do 😂 i will try this to see if it resolve my problem ok that's better thanks i will keep this then

Buddy•2y ago

ElioOP•2y ago

and i won't forget to save this to not forget it 🙂 thanks !

Buddy•2y ago

Anytime. Good luck.
